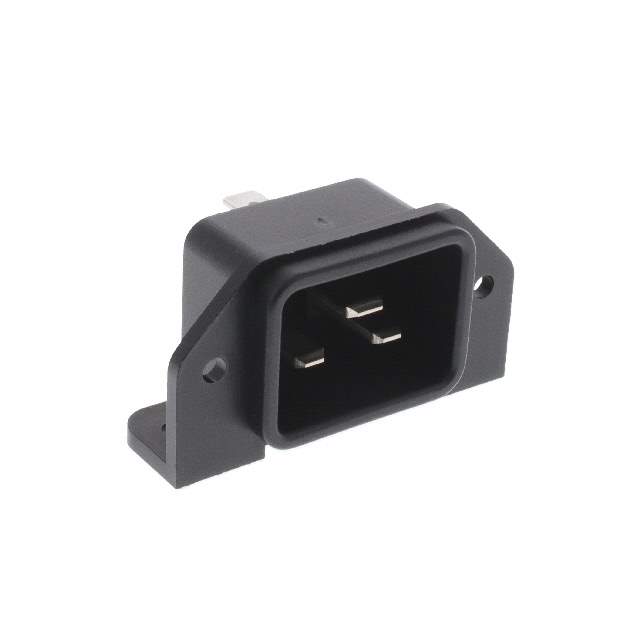

6163.0019 Real Image
Same model may have multiple batches, images only for reference.

6163.0019

Part No 6163.0019
Manufacturer Schurter Inc.
Catalog AC Power Connectors
Description PWR ENT RCPT IEC320-C20 PNL SLDR / Power Entry Connector Receptacle, Male Blades IEC 320-C20 Panel Mount, Flange
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - AC Power Connectors - Power Entry Modules (PEM)
Mfr SCHURTER Inc.
Series 1601
Package Bulk
Connector Style IEC 320-C20
Connector Type Receptacle, Male Blades
Current Rating - Appliance Inlet 16A
Voltage Rating - Appliance Inlet 250VAC
Number of Positions 3
Filter Type Unfiltered - Commercial
Accomodates a Fuse No
Mounting Type Panel Mount, Flange
Termination Solder Eyelet
Panel Cutout Dimensions Rectangular - 34.70mm x 26.50mm
Ingress Protection IP20
Approval Agency CCC, cCSAus, ENEC, UL
Standard Package 50
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 1352173-6163.0019
Ultra Librarian 3D Model Ultra Librarian 6163.0019 CAD Model

Description

The 6163.0019 is a 3 position, IEC 320-C20 connector designed for use in power entry modules (PEM).

  • Connector Type: Power Entry Module (PEM) Connector
  • Positions: 3
  • Standard: IEC 320-C20
  • Connector Function: Receptacle
  • Blade Type: Male Blades
  • Termination Style: Solder Eyelet
  • Mounting Type: Panel Mount, Flange Mounted
  • Panel Cutout Dimension: 34.70mm x 26.50mm
  • Filter Type: Unfiltered-Commercial
  • Fuse Holder/Drawer: No Fuse Holder, Drawer
  • Ingress Protection: IP20
  • Current Rating - Appliance Inlet: 16A
  • Voltage Rating - Appliance Inlet: 250VAC
  • Package: Bulk
  • Standard Package: 50
  • ECCN: EAR99
  • MSL Level: Not Applicable
  • REACH: Unaffected
  • Manufacturer: SCHURTER Inc.
