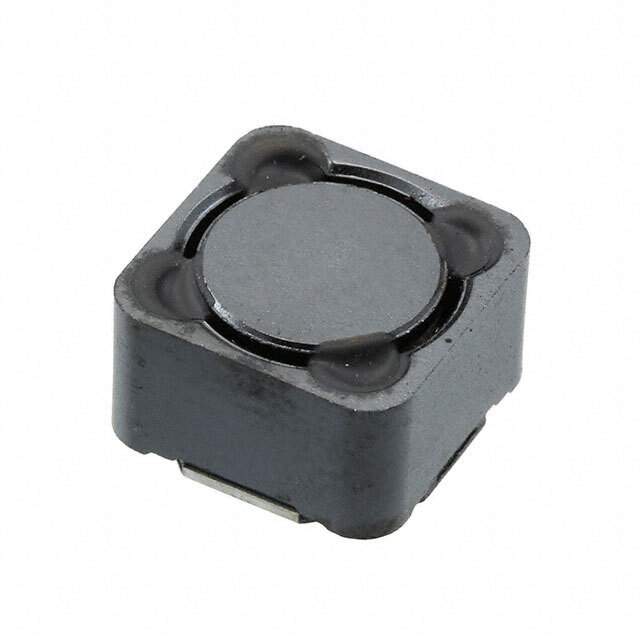

SRR1280A-821K Real Image
Same model may have multiple batches, images only for reference.

SRR1280A-821K

Part No SRR1280A-821K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1280A-821K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1280A
Package Tape & Reel
Material - Core Ferrite
Inductance 820 µH
Tolerance ±10%
Current Rating (Amps) 700 mA
Current - Saturation (Isat) 940mA
Shielding Shielded
DC Resistance (DCR) 1.5Ohm Max
Q @ Freq 20 @ 1KHz
Frequency - Self Resonant 1.4MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Supplier Device Package 1280
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.315" (8.00mm)
Base Product Number SRR1280A
Other Names SRR1280A-821KDKR,SRR1280A-821KTR,SRR1280A-821K,SRR1280A-821KCT
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273371-SRR1280A-821K
Ultra Librarian 3D Model Ultra Librarian SRR1280A-821K CAD Model

Description

The SRR1280A-821K is an electronic component manufactured by Bourns Inc.

  • Product: Fixed inductor
  • Shielding: Yes
  • Inductance: 820 µH
  • Height-Seated (max): 0.315"
  • Tolerance: ±10%
  • Frequency-Self-Resonant: 1.4MHz
  • DC Resistance (DCR): 1.5Ohm Max
  • Temperature Range: -40°C to 125°C
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
  • HTSUS: 8504.50.4000
