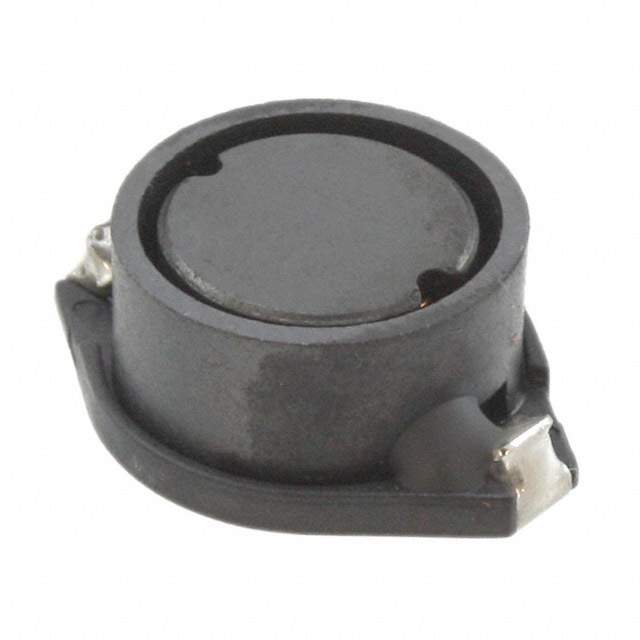

Same model may have multiple batches, images only for reference.

SRR1806-101M

Name: SRR1806-101M
Brand: Bourns Inc.
SKU: 1273365
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SRR1806-101M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRR1806-101M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR1806
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	100 µH
Tolerance	±20%
Current Rating (Amps)	1.3 A
Current - Saturation (Isat)	2.6A
Shielding	Shielded
DC Resistance (DCR)	270mOhm
Q @ Freq	40 @ 796kHz
Frequency - Self Resonant	4.6MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max)	0.280" (7.10mm)
Base Product Number	SRR1806
Other Names	-SRR1806-101MCT,-SRR1806-101M,SRR1806-101MTR,-SRR1806-101M,-SRR1806-101MTR,SRR1806-101M,SRR1806101M,SRR1806-101MCT
Standard Package	250
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273365-SRR1806-101M
Ultra Librarian 3D Model	Ultra Librarian SRR1806-101M CAD Model

Alternative Products

Description

The SRR1806-101M is a fixed inductor manufactured by Bourns Inc.

Series: SRR1806
Type: Drum core, wirewound
Package: Tape and reel (TR)
Shielded: Yes
Inductance: 100 μH
Q @ Freq: 40 @ 796kHz
Frequency Self-Resonant: 4.6MHz
DC Resistance (DCR): 270mOhm
Current Rating (Amps): 1.3A
Temperature Range: -40°C ~ 125°C.
MSL Level: 1 (Unlimited)
