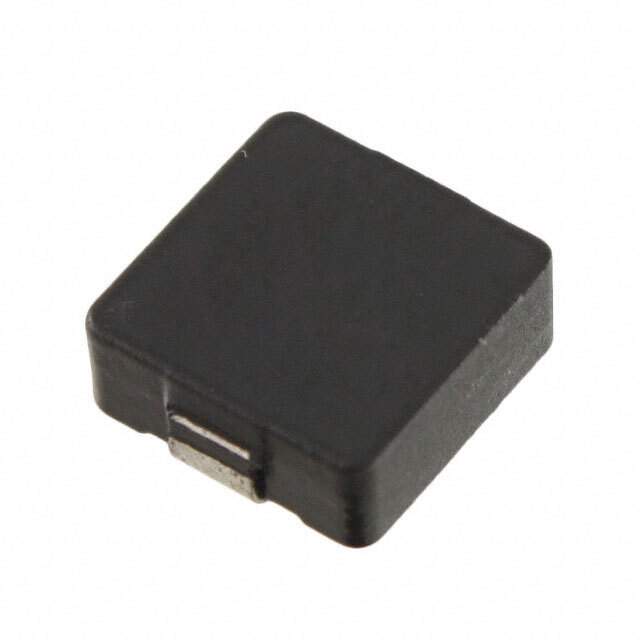

HCM1104-4R7-R

Name: HCM1104-4R7-R
Brand: Eaton Bussmann
SKU: 1164505
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	HCM1104-4R7-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 8.5A 20 MOHM SMD / 4.7 µH Shielded Drum Core, Wirewound Inductor 8.5 A 20mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	HCM1104
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Iron Powder
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	8.5 A
Current - Saturation (Isat)	15A
Shielding	Shielded
DC Resistance (DCR)	20mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.437" L x 0.394" W (11.10mm x 10.00mm)
Height - Seated (Max)	0.157" (4.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	283-3543-6,HCM11044R7R,283-3543-2,283-3543-1
Standard Package	850
Win Source Part Number	1164505-HCM1104-4R7-R
Ultra Librarian 3D Model	Ultra Librarian HCM1104-4R7-R CAD Model

Alternative Products

Description

The HCM1104-4R7-R is a drum core, wirewound inductor from Eaton, designed for use in electronic circuits.

Shielding: Shielded type
Inductance: 4.7 µH
Tolerance: ±20%
Core Material: Iron powder
DC Resistance: 20mOhm max
Mounting: SMD (SMT)
Current Rating: 8.5 A
Saturation Current: 15A
Height: 0.157" (4.00mm)
Dimension: 0.437" L x 0.394" W (11.10mm x 10.00mm)
Temperature Range: -55°C ~ 125°C
