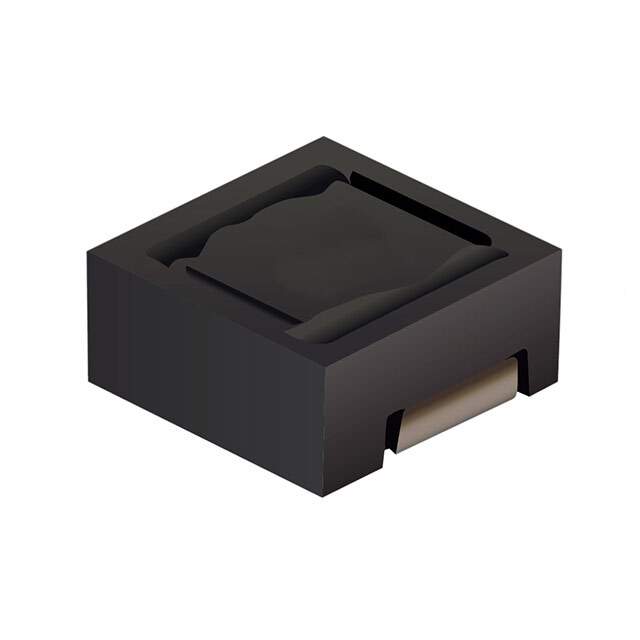

SRR3818A-470M Real Image
Same model may have multiple batches, images only for reference.

SRR3818A-470M

Part No SRR3818A-470M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR3818A-470M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR3818A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 560 mA
Current - Saturation (Isat) 300mA
Shielding Shielded
DC Resistance (DCR) 1.03Ohm Max
Frequency - Self Resonant 15MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRR3818A
Other Names SRR3818A-470MDKR,SRR3818A-470MCT,SRR3818A-470MTR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273341-SRR3818A-470M
Ultra Librarian 3D Model Ultra Librarian SRR3818A-470M CAD Model

Description

The SRR3818A series from Bourns Inc. is a shielded drum core wirewound fixed inductor.

  • Inductance: 47 µH
  • Tolerance: ±20%
  • Mounting Type: SMD (SMT)
  • Core Material: Ferrite
  • DC Resistance (DCR): 1.03Ohm max
  • Temperature Range: -40°C to 150°C
  • Rated Current: 560 mA
  • Self-Resonant Frequency: 15MHz
  • Package/Case: Nonstandard
  • Height Seated (Max): 0.079" (2.00mm)
  • Ideal for: Automotive electronics, power supplies, and telecommunications equipment
