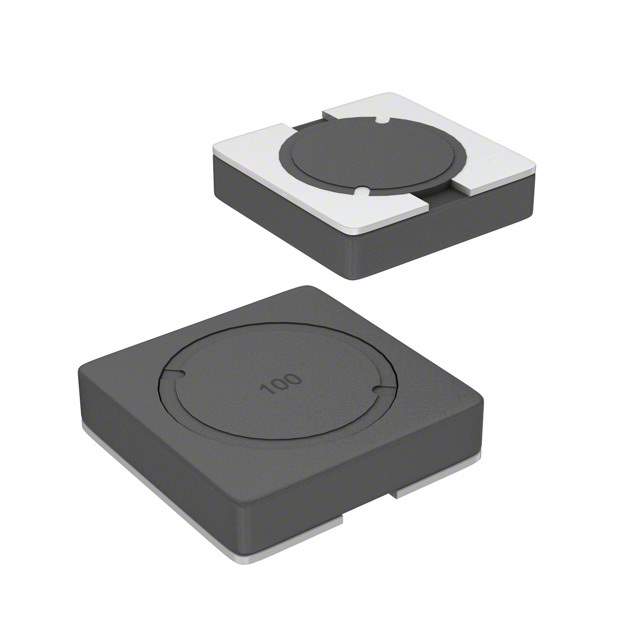

SRR4011-820YL Real Image
Same model may have multiple batches, images only for reference.

SRR4011-820YL

Part No SRR4011-820YL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR4011-820YL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR4011
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 82 µH
Tolerance ±30%
Current Rating (Amps) 330 mA
Current - Saturation (Isat) 300mA
Shielding Shielded
DC Resistance (DCR) 2.2Ohm Max
Q @ Freq 13 @ 2.52MHz
Frequency - Self Resonant 11MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max) 0.051" (1.30mm)
Base Product Number SRR4011
Standard Package 1,200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273329-SRR4011-820YL
Ultra Librarian 3D Model Ultra Librarian SRR4011-820YL CAD Model

Description

The SRR4011-820YL is a drum core, wirewound inductor from Bourns Inc.

  • Shielding: Shielded
  • Package/Case: Non-standard
  • Inductance: 82 µH
  • Tolerance: ±30%
  • Core Material: Ferrite
  • Q @ Freq: 13 @ 2.52MHz
  • Frequency of Self-Resonant: 11MHz
  • Maximum Height: 0.051 inches
  • Standard Package Quantity: 1,200
  • Maximum Current: 330 mA
  • DC Resistance: 2.2Ohm Max
  • Operating Temperature Range: -40°C to 125°C
  • Dimensions: 0.189 inches L x 0.189 inches W (4.80mm x 4.80mm)
  • Suitable for: Use in electronic circuits where inductance is required
