Same model may have multiple batches, images only for reference.

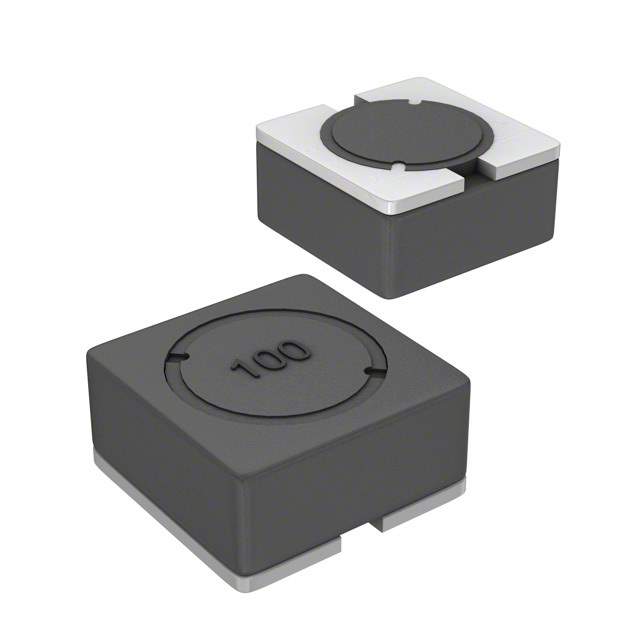

SRR5028-390Y Real Image
Same model may have multiple batches, images only for reference.

SRR5028-390Y

Part No SRR5028-390Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR5028-390Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR5028
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 39 µH
Tolerance ±30%
Current Rating (Amps) 860 mA
Current - Saturation (Isat) 720mA
Shielding Shielded
DC Resistance (DCR) 210mOhm Max
Q @ Freq 8 @ 2.52MHz
Frequency - Self Resonant 13MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRR5028
Other Names -SRR5028-390Y,SRR5028390Y,-SRR5028-390YTR,-SRR5028-390YCT,SRR5028-390YCT,SRR5028-390Y,SRR5028-390YTR,-SRR5028-390Y
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273241-SRR5028-390Y
Ultra Librarian 3D Model Ultra Librarian SRR5028-390Y CAD Model

Description

The SRR5028-390Y is a drum core, wirewound fixed inductor from Bourns Inc.

  • Shielding: Yes
  • Inductance: 39 microhenry
  • Tolerance: ±30%
  • DC Resistance: 210 milliohm max
  • Current Rating: 860 mA
  • Package: Tape and reel (TR) or cut tape (CT)
  • Package/Case: Nonstandard
  • Dimension: 0.228 inches L x 0.228 inches W (5.80mm x 5.80mm)
  • Height: 0.118 inches (3.00mm)
  • Operating Temperature Range: -40°C to 125°C
  • Material: Ferrite core
  • Q @ Freq: 8 @ 2.52MHz
  • Frequency: 13MHz
  • ECCN: EAR99 compliant
  • REACH: Unaffected
