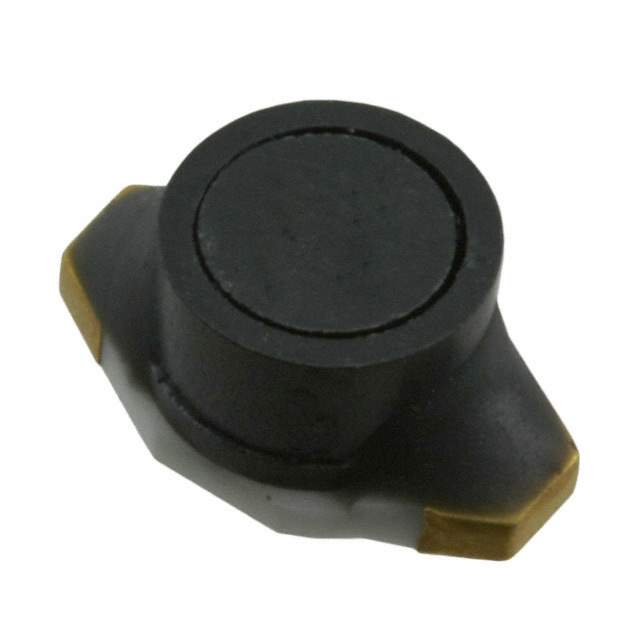

SRR6603-681ML Real Image
Same model may have multiple batches, images only for reference.

SRR6603-681ML

Part No SRR6603-681ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR6603-681ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR6603
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 680 µH
Tolerance ±20%
Current Rating (Amps) 180 mA
Current - Saturation (Isat) 55mA
Shielding Shielded
DC Resistance (DCR) 2.2Ohm Max
Q @ Freq 40 @ 100kHz
Frequency - Self Resonant 3MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.260" L x 0.173" W (6.60mm x 4.40mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRR6603
Other Names SRR6603-681ML,-SRR6603-681ML,SRR6603-681MLCT,-SRR6603-681MLCT,SRR6603-681MLTR,SRR6603-681MLDKR,-SRR6603-681ML,-SRR6603-681MLTR,SRR6603681ML
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273205-SRR6603-681ML
Ultra Librarian 3D Model Ultra Librarian SRR6603-681ML CAD Model

Description

The Bourns Inc. 1126585 is a SRR6603 series drum core, wirewound inductor that is shielded and has a standard package of 600.

  • Inductance: 680 μH
  • Tolerance: ±20%
  • DC Resistance (DCR): 2.2 ohms Max
  • Operating Temperature Range: -55°C to 125°C
  • Package: Tape and reel
  • Mounted: SMD (SMT)
  • Current Rating: 180 mA
  • Inductance Frequency Test: 100 kHz
  • REACH: Unaffected
  • HTSUS: 8504.50.4000
