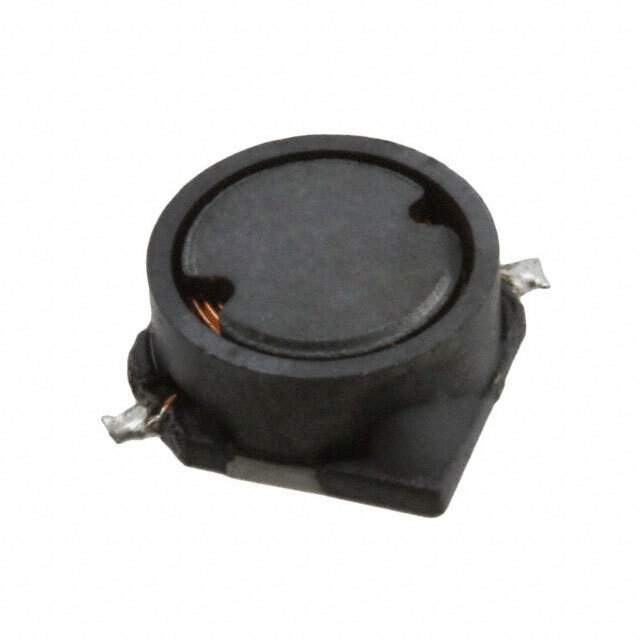

Same model may have multiple batches, images only for reference.

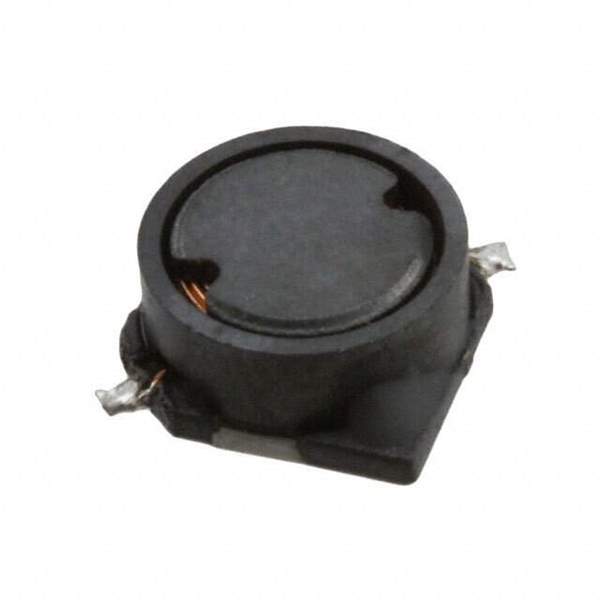

SRR7032-680M Real Image
Same model may have multiple batches, images only for reference.

SRR7032-680M

Part No SRR7032-680M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR7032-680M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR7032
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±20%
Current Rating (Amps) 600 mA
Current - Saturation (Isat) 700mA
Shielding Shielded
DC Resistance (DCR) 380mOhm Max
Q @ Freq 22 @ 2.52MHz
Frequency - Self Resonant 16MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.134" (3.40mm)
Base Product Number SRR7032
Other Names SRR7032-680MCT,SRR7032-680MDKR,-SRR7032-680M,-SRR7032-680M,-SRR7032-680MCT,SRR7032-680MTR,-SRR7032-680MTR,SRR7032-680M,SRR7032680M
Standard Package 1,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273192-SRR7032-680M
Ultra Librarian 3D Model Ultra Librarian SRR7032-680M CAD Model

Description

The SRR7032-680M is a shielded, drum core, wirewound inductor from Bourns that comes in a nonstandard package.

  • Inductance: 68 μH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Q @ Freq: 22 @ 2.52MHz
  • Frequency of Self-Resonance: 16MHz
  • DC Resistance: 380mOhm max
  • Current Rating: 600 mA
  • Temperature Range: -40°C to 125°C
  • REACH Regulations: Not affected
  • Dimensions: 0.276" L x 0.276" W (7.00mm x 7.00mm)
  • Mounting Type: SMD (SMT)
