Same model may have multiple batches, images only for reference.

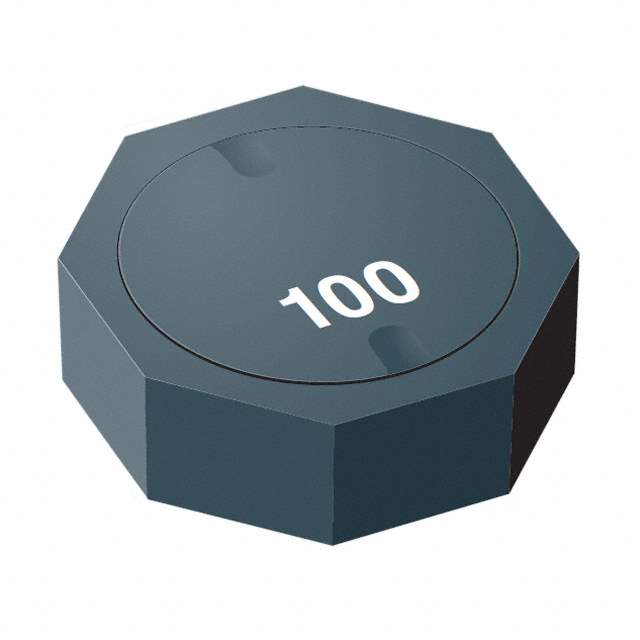

SRU1038A-6R2Y Real Image
Same model may have multiple batches, images only for reference.

SRU1038A-6R2Y

Part No SRU1038A-6R2Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 6.2UH 4A 24 MOHM SMD / 6.2 µH Shielded Drum Core, Wirewound Inductor 4 A 24mOhm Max Nonstandard
Datasheet
SRU1038A-6R2Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.2 µH
Tolerance ±30%
Current Rating (Amps) 4 A
Current - Saturation (Isat) 4.2A
Shielding Shielded
DC Resistance (DCR) 24mOhm Max
Q @ Freq 12 @ 7.96MHz
Frequency - Self Resonant 25MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.161" (4.10mm)
Base Product Number SRU1038A
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 118-SRU1038A-6R2YCT,118-SRU1038A-6R2YTR,118-SRU1038A-6R2YDKR,SRU1038A-6R2YDKR,SRU1038A-6R2YDKR-ND,SRU1038A-6R2YTR,SRU1038A-6R2YTR-ND,SRU1038A-6R2YCT,SRU1038A-6R2Y-ND,SRU1038A-6R2YCT-ND
Standard Package 800
Win Source Part Number 1327845-SRU1038A-6R2Y
Ultra Librarian 3D Model Ultra Librarian SRU1038A-6R2Y CAD Model

Description

The Bourns Inc. SRU1038A-6R2Y is a fixed inductor that is designed to provide a high level of performance and reliability.

  • Core Type: Shielded drum core, wirewound
  • Core Material: Ferrite
  • Inductance: 6.2 μH
  • Tolerance: ±30%
  • Height: 0.161" (4.10mm) when seated
  • Standard Package: 800
  • AEC-Q200: Yes
  • Q @ Freq: 12 @ 7.96MHz
  • Frequency of Self-Resonant: 25MHz
  • DC Resistance (DCR): 24mOhm Max
  • Temperature Range: -40°C to 125°C
  • RoHS3 Compliant: Yes
