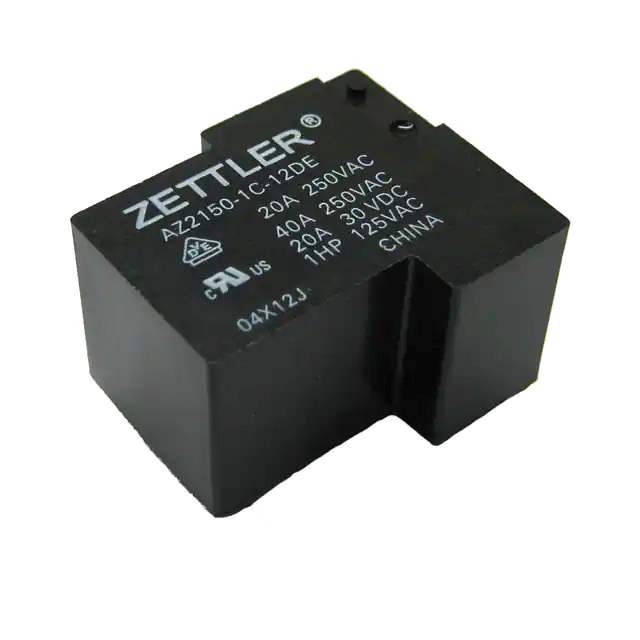

AZ2150-1A-24DEF Real Image
Same model may have multiple batches, images only for reference.

AZ2150-1A-24DEF

Part No AZ2150-1A-24DEF
Manufacturer American Zettler, Inc.
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 40A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Datasheet
AZ2150-1A-24DEF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr American Zettler, Inc.
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 40 A
Switching Voltage 300VAC, 30VDC - Max
Coil Current 36.4 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 12 ms
Release Time 5 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 660 Ohms
Base Product Number AZ2150
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 912385-AZ2150-1A-24DEF
Ultra Librarian 3D Model Ultra Librarian AZ2150-1A-24DEF CAD Model

Description

The AZ2150-1A-24DEF is a power relay from American Zettler, Inc.

  • Category: Relays - Power Relays, Over 2 Amps
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 40 A
  • Coil Voltage: 24VDC
  • Coil Resistance: 660 Ohms
  • Packaging: Tray packaging
  • Standard Package: 40 pieces
  • Operating Temperature: -55°C to 85°C
  • Seal Rating: Sealed - fully
