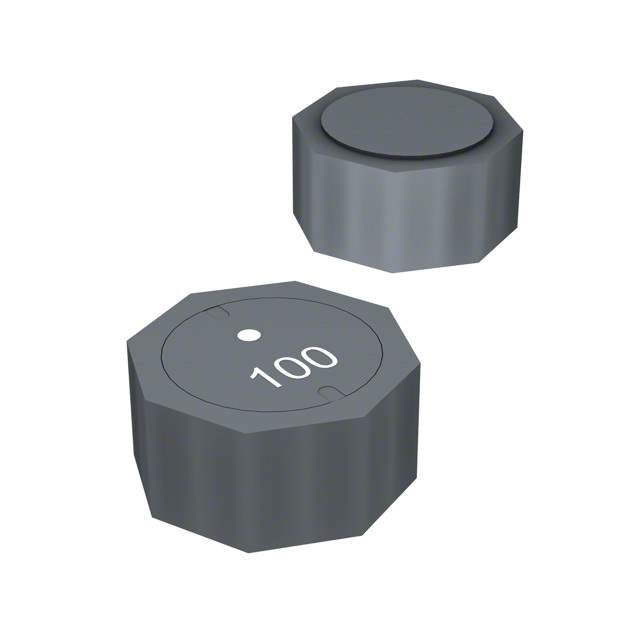

SRU1048-120Y Real Image
Same model may have multiple batches, images only for reference.

SRU1048-120Y

Part No SRU1048-120Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRU1048-120Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU1048
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 12 µH
Tolerance ±30%
Current Rating (Amps) 4 A
Current - Saturation (Isat) 3.3A
Shielding Shielded
DC Resistance (DCR) 25mOhm
Q @ Freq 26 @ 2.52MHz
Frequency - Self Resonant 15MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Base Product Number SRU1048
Other Names 118-SRU1048-120YCT,118-SRU1048-120YTR,118-SRU1048-120YDKR,SRU1048-120Y
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273142-SRU1048-120Y
Ultra Librarian 3D Model Ultra Librarian SRU1048-120Y CAD Model

Description

The 1273142-SRU1048-120Y is a fixed inductor that has a drum core, wirewound type.

  • Manufacturer: Bourns Inc.
  • Shielding: Shielded
  • Packaging: Tape and Reel
  • Inductance: 12 microhenries
  • Tolerance: ±30 percent
  • Material: Ferrite
  • Q @ Freq: 26 @ 2.52MHz
  • Self-Resonant Frequency: 15MHz
  • DC Resistance (DCR): 25mOhm
  • Current Rating: 4A
  • Mounting: SMD (SMT)
  • Operating Temperature: -40 degrees Celsius to 125 degrees Celsius
  • Dimension: 0.394 inches L x 0.394 inches W (10.00mm x 10.00mm)
