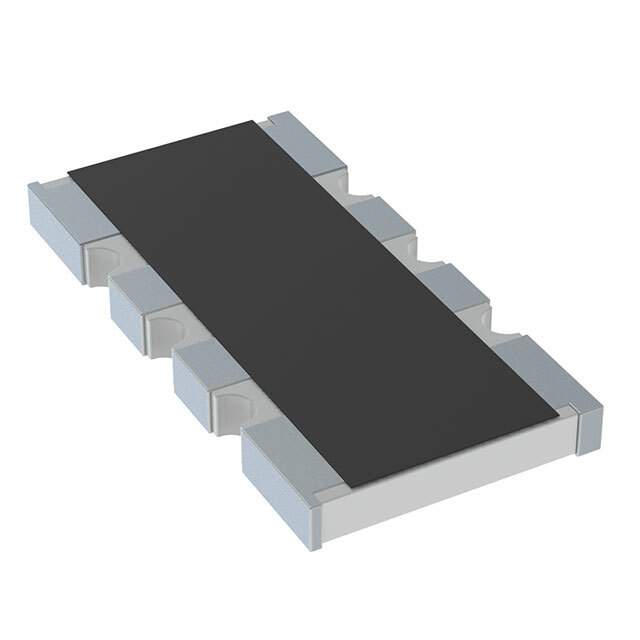

CAY16-47R0F4LF Real Image
Same model may have multiple batches, images only for reference.

CAY16-47R0F4LF

Part No CAY16-47R0F4LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 47 OHM 1206 / 47 Ohm ±1% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Convex, Long Side Terminals
Datasheet
CAY16-47R0F4LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Bourns Inc.
Series CAY16
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 47
Tolerance ±1%
Number of Resistors 4
Number of Pins 8
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric), Convex, Long Side Terminals
Supplier Device Package 1206
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.024" (0.60mm)
Base Product Number CAY16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Other Names CAY16-47R0F4LFDKR,CAY16-47R0F4LFTR,CAY16-47R0F4LF-ND,CAY16-47R0F4LFCT
Standard Package 5,000
Win Source Part Number 1120465-CAY16-47R0F4LF
Ultra Librarian 3D Model Ultra Librarian CAY16-47R0F4LF CAD Model

Description

The CAY16-47R0F4LFDKR from Bourns Inc. is a resistor network array with a tape and reel package.

  • Series: CAY16
  • Tolerance: ±1%
  • Temperature Coefficient: ±200ppm/°C
  • Resistance Value: 47 ohms
  • Number of Resistors: Four
  • Package/Case: 1206 (3216 metric), convex, long side terminals
  • Power per Element: 62.5mW
  • Operating Temperature Range: -55°C to 125°C
