CD-HD2006L Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

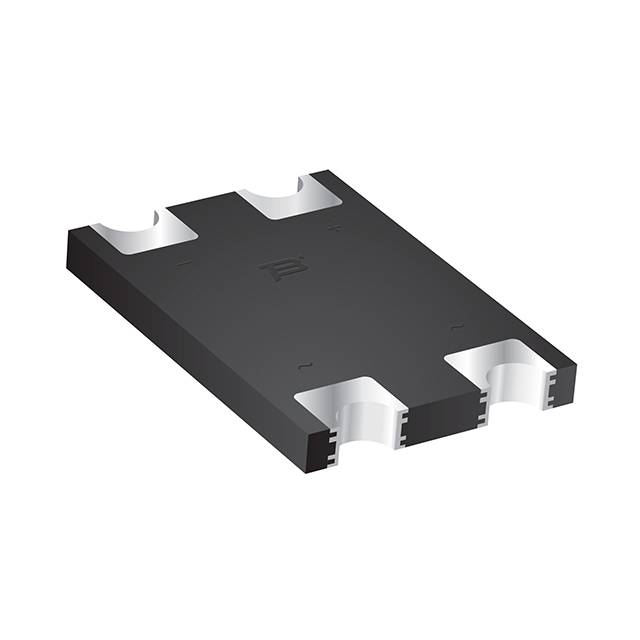

CD-HD2006L

Part No CD-HD2006L
Manufacturer Bourns Inc.
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 60V 2A
Datasheet
CD-HD2006L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor ProductsDiodesBridge Rectifiers
Manufacturer Bourns Inc.
Part Status Active
Diode Type Single Phase
Technology Schottky
Voltage - Peak Reverse (Max) 60 V
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 2 A
Current - Reverse Leakage @ Vr 200 μA @ 60 V
Operating Temperature -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case Chip, Concave Terminals
Base Product Number CD-HD
Ultra Librarian 3D Model Ultra Librarian CD-HD2006L CAD Model
