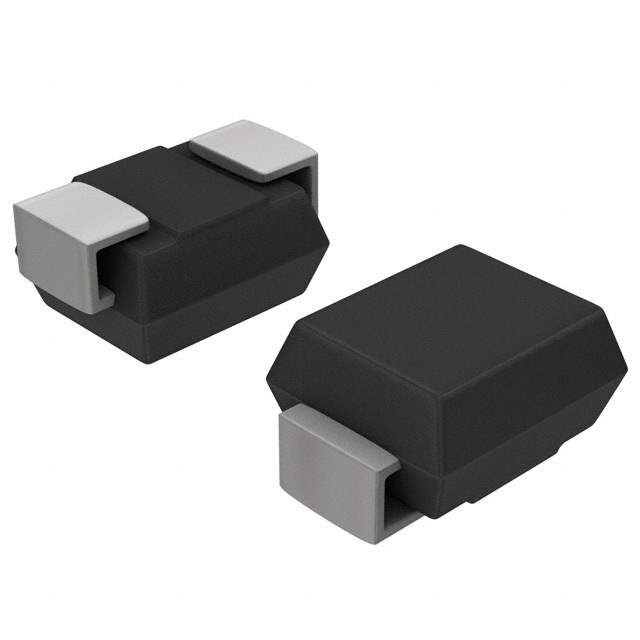

CD214B-R3200 Real Image
Same model may have multiple batches, images only for reference.

CD214B-R3200

Part No CD214B-R3200
Manufacturer Bourns Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 200V 3A SMB
Datasheet
CD214B-R3200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1V @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 5μA @ 200V
Capacitance @ Vr, F 40pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package SMB (DO-214AA)
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 1024266-CD214B-R3200
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian CD214B-R3200 CAD Model

Description

The Bourns Inc. 1024266-CD214B-R3200 is a standard diode type electronic component that is ideal for use in discrete semiconductor products.

  • Maximum Reverse Voltage: 200V
  • Average Rectified Current: 3A
  • Forward Voltage: 1V @ 1A
  • Reverse Leakage Current @ 200V: 5μA
  • Capacitance @ 4V, 1MHz: 40pF
  • Operating Temperature: -65°C to 175°C
  • Package: SMB (DO-214AA)
  • Recovery Speed: Fast (200mA (Io))
  • Application: RF/IF and RFID
