Same model may have multiple batches, images only for reference.

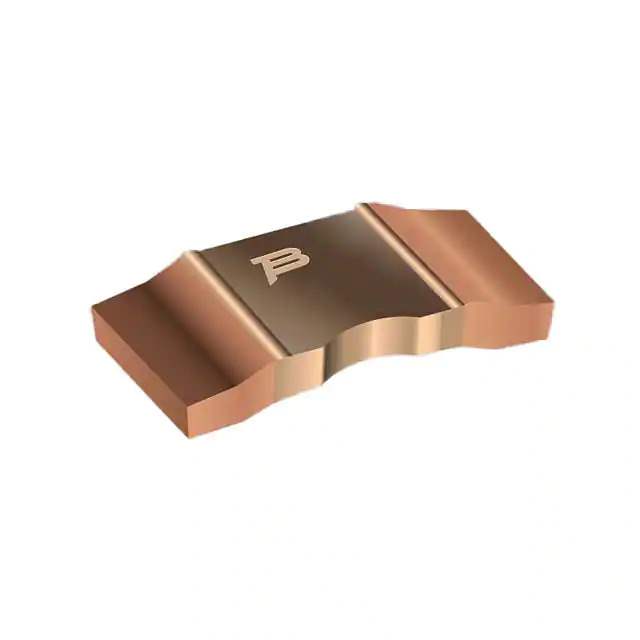

CSS2H-2512R-L500F Real Image
Same model may have multiple batches, images only for reference.

CSS2H-2512R-L500F

Part No CSS2H-2512R-L500F
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 500 UOHM 1% 6W 2512 / 0.5 mOhms ±1% 6W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense Metal Element
Datasheet
CSS2H-2512R-L500F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Bourns Inc.
Series CSS2H-2512
Package Tape & Reel
Product Status Active
Resistance 0.5 mOhms
Tolerance ±1%
Power (Watts) 6W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.250" L x 0.120" W (6.35mm x 3.05mm)
Height - Seated (Max) 0.037" (0.94mm)
Number of Terminations 2
Base Product Number CSS2H
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
California Prop 65 Warning Information
Win Source Part Number 851524-CSS2H-2512R-L500F
Ultra Librarian 3D Model Ultra Librarian CSS2H-2512R-L500F CAD Model

Description

The CSS2H-2512 is a chip resistor designed for surface mount applications. Bold the product name: CSS2H-2512 and manufacturer: Bourns Inc.

  • Size: 0.250" L x 0.120" W (6.35mm x 3.05mm)
  • Height: 0.037" (0.94mm)
  • Resistance: 0.5 mOhms
  • Power Rating: 6W
  • Composition: Metal Element
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Packaging: Tape and Reel
  • Standard Package: 3,000 pcs
  • Product Status: Active
  • REACH: Unaffected
