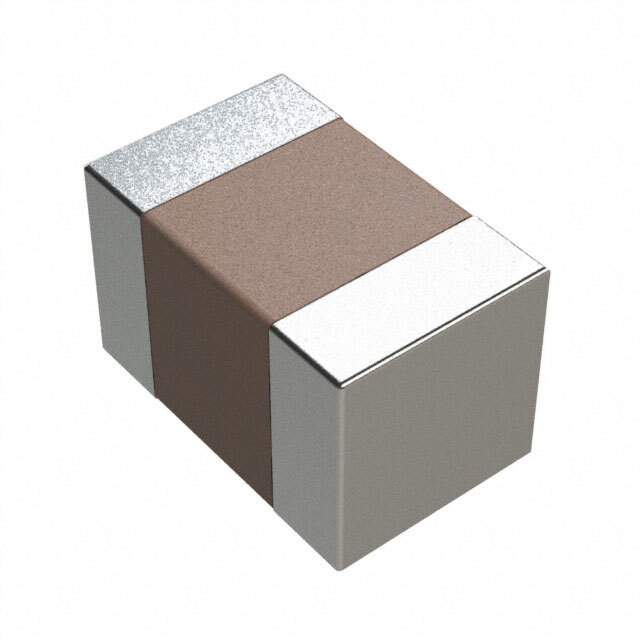

CV201210-R22K Real Image
Same model may have multiple batches, images only for reference.

CV201210-R22K

Part No CV201210-R22K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 220NH 250MA 500MOHM SM / 220 nH Shielded Multilayer Inductor 250 mA 500mOhm Max 0805 (2012 Metric)
Datasheet
CV201210-R22K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series CV201210
Package Tape & Reel
Type Multilayer
Material - Core Ferrite
Inductance 220 nH
Tolerance ±10%
Current Rating (Amps) 250 mA
Shielding Shielded
DC Resistance (DCR) 500mOhm Max
Q @ Freq 20 @ 25MHz
Frequency - Self Resonant 170MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 25 MHz
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.041" (1.05mm)
Base Product Number CV201210
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names CV201210-R22KTR,CV201210-R22K-ND,CV201210-R22KCT,CV201210-R22KDKR
Standard Package 4,000
Win Source Part Number 1141972-CV201210-R22K
Ultra Librarian 3D Model Ultra Librarian CV201210-R22K CAD Model

Description

The CV201210-R22K is a multilayer fixed inductor that is designed to deliver optimal performance and reliability to meet the demands of various electronic applications from Bourns Inc.

  • Popularity: high
  • Supply and Demand Status: unlimited
