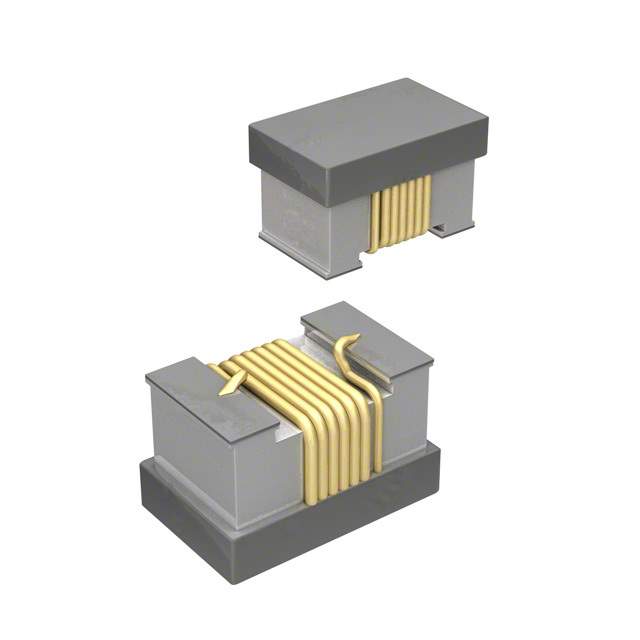

CW160808-33NJ Real Image
Same model may have multiple batches, images only for reference.

CW160808-33NJ

Part No CW160808-33NJ
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 33NH 600MA 220MOHM SMD / 33 nH Unshielded Drum Core, Wirewound Inductor 600 mA 220mOhm 0603 (1608 Metric)
Datasheet
CW160808-33NJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series CW160808
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Alumina
Inductance 33 nH
Tolerance ±5%
Current Rating (Amps) 600 mA
Shielding Unshielded
DC Resistance (DCR) 220mOhm
Q @ Freq 35 @ 250MHz
Frequency - Self Resonant 2.3GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 250 MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Dimension 0.065" L x 0.041" W (1.65mm x 1.05mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number CW160808
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names CW160808-33NJ-ND,CW160808-33NJCT,CW16080833NJ,CW160808-33NJTR,CW160808-33NJDKR
Standard Package 3,000
Win Source Part Number 1051353-CW160808-33NJ
Ultra Librarian 3D Model Ultra Librarian CW160808-33NJ CAD Model

Description

The CW160808-33NJ is a fixed inductor manufactured by Bourns Inc.

  • Inductance: 33 nH
  • Tolerance: ±5%
  • Core: drum core
  • Design: wirewound design
  • Shielded: unshielded
  • Current rating: 600 mA
  • DC resistance: 220mOhm
  • Supply and demand status: balance
  • Popularity: low
