Same model may have multiple batches, images only for reference.

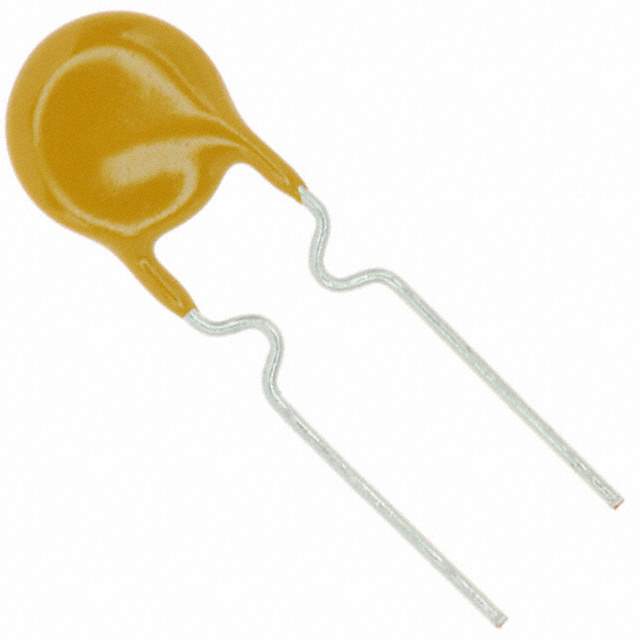

MF-R050-0-99 Real Image
Same model may have multiple batches, images only for reference.

MF-R050-0-99

Part No MF-R050-0-99
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 500MA RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Bulk
Part Status Last Time Buy
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Maximum) 500mA
Current - Trip (It) 1A
Time to Trip 4s
Resistance - Initial (Ri) (Minimum) 410 mOhms
Resistance - Post Trip (R1) (Maximum) 1.17 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Parts Dimension 0.311" Dia x 0.122" T (7.90mm x 3.10mm)
Height - Seated (Maximum) 0.539" (13.70mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Family Part Number MF-R050
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 754835-MF-R050-0-99
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MF-R050-0-99 CAD Model

Description

The Bourns Inc. MF-R050-0-99 is a polymeric type circuit protection component with a maximum voltage capacity of 60V and a maximum current of 40A.

  • Maximum Voltage: 60V
  • Maximum Current: 40A
  • Lead Spacing: 0.201" (5.10mm)
  • Trip Current: 1A
  • Time to Trip: 4s
  • Approvals: cURus, TUV
  • Temperature Range: -40°C ~ 85°C
  • Package: Radial, disc
  • Initial Resistance: 410 mOhms
  • Post Trip Resistance: 1.17 Ohms
  • Hold Current: 500mA
  • Maximum Height: 0.539" (13.70mm)
  • Applications: Circuit protection
