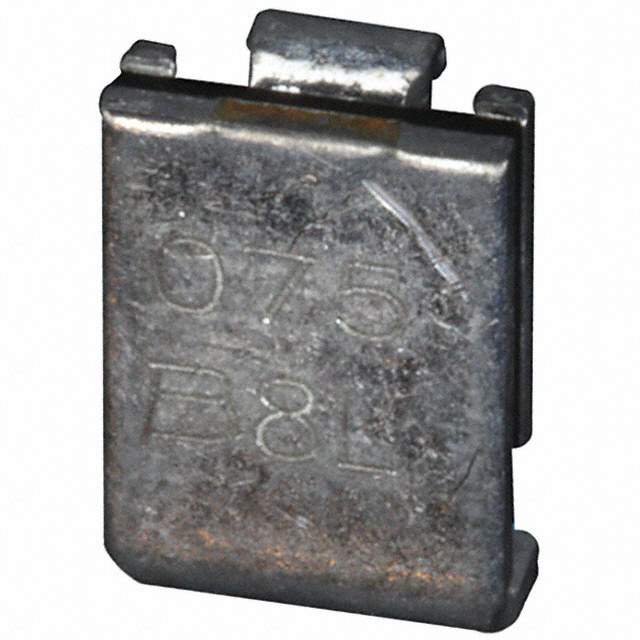

MF-SM075-2 Real Image
Same model may have multiple batches, images only for reference.

MF-SM075-2

Part No MF-SM075-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE .75A 30V SMD
Datasheet
MF-SM075-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 80A
Current - Hold (Ih) (Max) 750mA
Current - Trip (It) 1.5A
Time to Trip 300ms
Resistance - Initial (Ri) (Min) 230 mOhm
Resistance - Post Trip (R1) (Max) 1 Ohm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.287" L x 0.214" W (7.31mm x 5.44mm)
Thickness (Max) 0.125" (3.18mm)
Approvals cURus, TUV
Win Source Part Number 003437-MF-SM075-2
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MF-SM075-2 CAD Model

Description

The Bourns Inc. electronic component with Win Source Part Number 003437-MF-SM075-2 is a polymeric type product that is designed to provide circuit protection.

  • Mount: surface mount device
  • Rating: rated AEC-Q200
  • Voltage Rating: 30V
  • Current Rating: 80A
  • Current Hold: 750mA
  • Current Trip: 1.5A
  • Time to Trip: 300ms
  • Operating Temperature Range: -40°C to 85°C
  • Supply and Demand Status: sufficient
  • Description: a high-quality product that is reliable and efficient.
