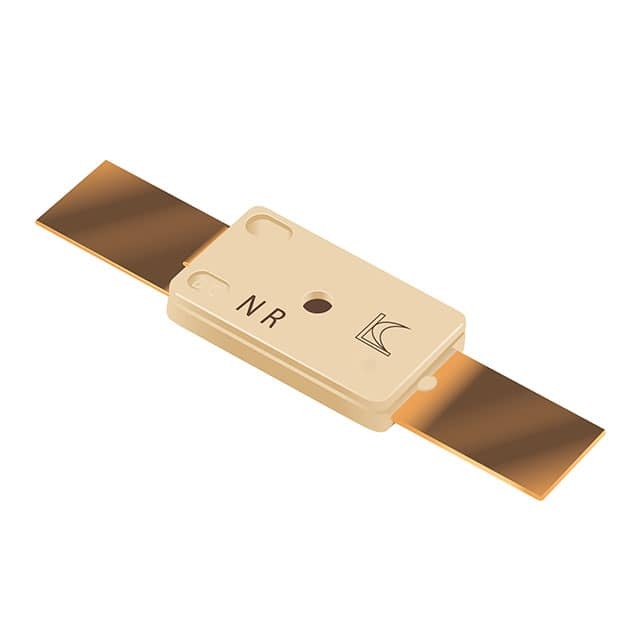

NR77CB0
Same model may have multiple batches, images only for reference.

NR77CB0

Part No NR77CB0
Manufacturer Bourns Inc.
Catalog Fuses
Description THERMOSTAT 77DEG C SPST-NC 2SMD
Datasheet
NR77CB0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Thermal Cutoffs (Thermal Fuses)
Mfr Bourns Inc.
Series Komatsulite™, NR
Package Bag
Product Status Active
Type Breaker
Rated Functioning Temperature 77°C (171°F)
Reset Temperature 40°C (104°F)
Voltage Rating - DC 28
Current Rating (Amps) 12 A
Approval Agency cUL, TUV, UL
Package / Case Nonstandard
Base Product Number NR77
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.20.0020
California Prop 65 Warning Information
Win Source Part Number 887546-NR77CB0
Ultra Librarian 3D Model Ultra Librarian NR77CB0 CAD Model

Description

The NR77CB0 is a thermal cutoff (thermal fuse) breaker designed for circuit protection against excessive temperature.

  • Category: Circuit Protection - Thermal Cutoffs (Thermal Fuses)
  • Voltage Rating: 28V
  • Current Rating: 12A
  • Reset Temperature: 40°C
  • Rated Functioning Temperature: 77°C
  • Package: Nonstandard
  • Packaging: Bag packaging, with a standard package of 1,000 pieces
  • Manufacturer: Bourns Inc.
  • Status: Active product
  • Approvals: cUL, TUV, and UL
