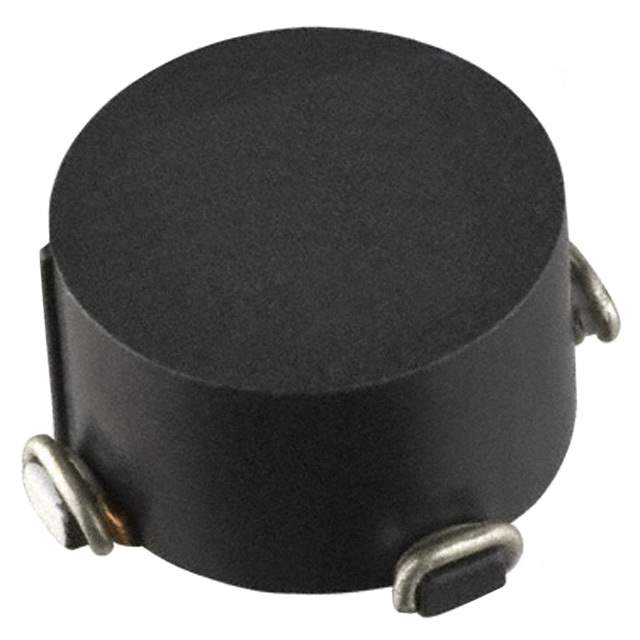

PM3700-60-RC Real Image
Same model may have multiple batches, images only for reference.

PM3700-60-RC

Part No PM3700-60-RC
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description SMD Common Mode Choke
Datasheet
PM3700-60-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Bourns Inc.
Series PM3700
Packaging Reel - TR
Number of Lines 2
Inductance @ Frequency 5mH @ 1kHz
Current Rating (Maximum) 2A
DC Resistance (DCR) (Maximum) 70 mOhm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Size 0.850" L x 0.850" W (21.60mm x 21.60mm)
Height (Maximum) 0.450" (11.43mm)
Package Horizontal, 4 PC Pad
Win Source Part Number 1238792-PM3700-60-RC
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Family Name PM3700
Introduction Date September 17, 2001
ECCN EAR99
Country of Origin China, Taiwan
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian PM3700-60-RC CAD Model

Description

The PM3700-60-RC from Bourns Inc. is a filter product from the PM3700 series.

  • Popularity: medium
  • Supply and Demand Status: limited supply and demand status
  • Mounting Style: surface mount device (SMD)
  • Package: horizontal, 4 PC pad
  • Current Rating: 2A
  • DC Resistance: 70 mOhm
  • Inductance: 5mH @ 1kHz
