PT61017PEL Real Image PT61017PEL real image PT61017PEL real image13000
PT61017PEL Real Image PT61017PEL real image PT61017PEL real image13000
Same model may have multiple batches, images only for reference.

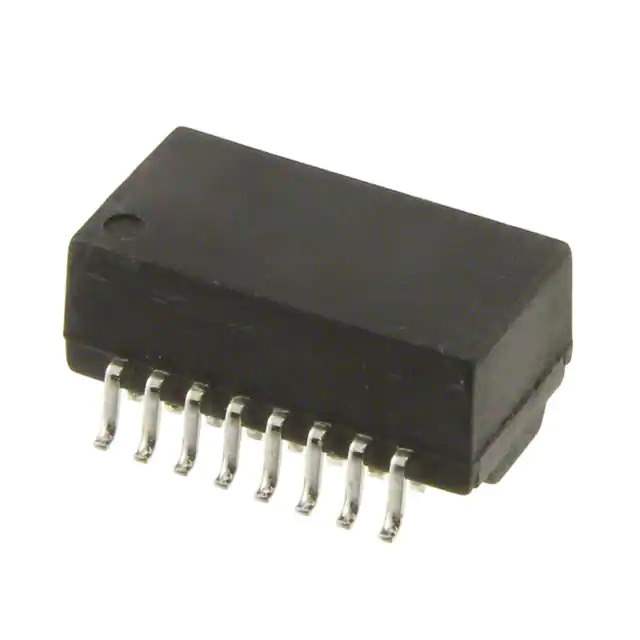

PT61017PEL

Part No PT61017PEL
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT 350UH / 350μH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Surface Mount
Datasheet
PT61017PEL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Bourns Inc.
Package Tape & Reel
Product Status Active
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.504" L x 0.272" W (12.80mm x 6.90mm)
Height - Seated (Max) 0.222" (5.65mm)
Temperature Range - Operating 0°C ~ 70°C
Base Product Number PT6101
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
California Prop 65 Warning Information
Win Source Part Number 657684-PT61017PEL
Ultra Librarian 3D Model Ultra Librarian PT61017PEL CAD Model

Description

The PT6101 series is a LAN 10/100 Base-T pulse transformer from Bourns Inc.

  • Size / Dimension: 0.504" L x 0.272" W (12.80mm x 6.90mm)
  • Inductance: 350µH
  • Height - Seated (Max): 0.222" (5.65mm)
  • Operating Temperature: 0°C ~ 70°C
  • Package / Case: Tape & Reel
  • Standard Package: 600 pcs
  • Mounting Type: Surface Mount
  • Product Status: Active
  • Application: LAN
