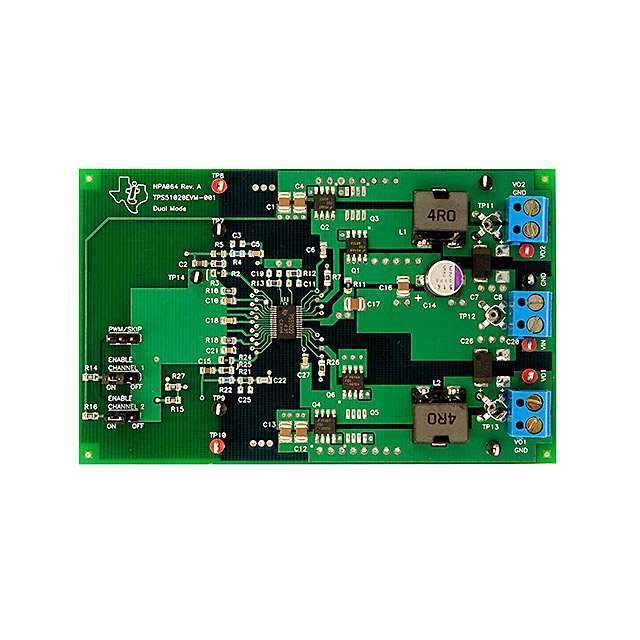

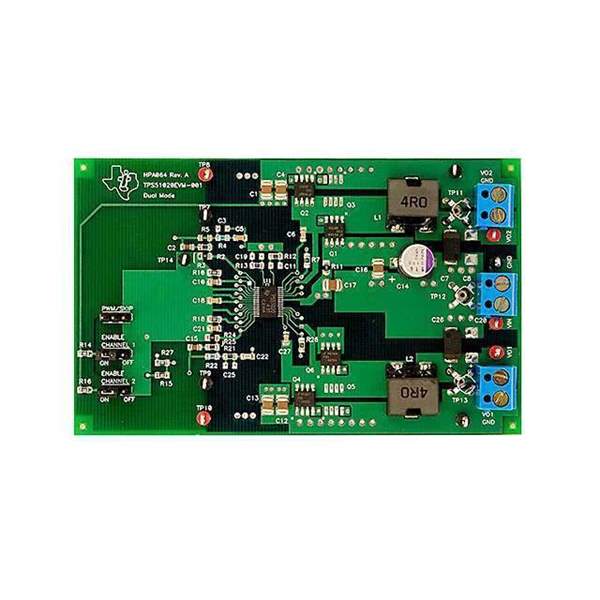

The TPS51020EVM-001 from Texas Instruments is an evaluation module designed to demonstrate the performance of the TPS51020, a dual, synchronous step-down controller with out-of-audio operation and 100-mA LDOs. This evaluation module provides an efficient and user-friendly platform for testing the full range of capabilities of the TPS51020 integrated circuit.

Key Features:

• Dual Synchronous Controllers: The TPS51020EVM-001 features dual synchronous buck controllers that support a wide range of input voltages, making it suitable for a variety of applications.
• High Efficiency: With synchronous rectification and advanced control techniques, the TPS51020EVM-001 achieves high efficiency, which is critical for thermal management and energy-saving applications.
• Adjustable Switching Frequency: Users can adjust the switching frequency of the module, allowing for optimization of efficiency and component size based on the specific requirements of the application.
• Out-of-Audio Operation: The TPS51020EVM-001 ensures quiet operation by avoiding the audio frequency range during operation, making it ideal for noise-sensitive applications.
• Built-in LDOs: The module includes 100-mA low-dropout linear regulators, providing additional regulated voltages for peripheral circuits.
• Comprehensive Protection Features: The TPS51020EVM-001 is equipped with over-voltage, under-voltage, over-current, and thermal protection to ensure safe operation under various conditions.

Applications:

The TPS51020EVM-001 is versatile and can be used in various applications, including:

• Notebook and sub-notebook computers
• Point-of-load power supplies
• Telecommunications and networking equipment
• Consumer electronics

Easy to Use:

The evaluation module comes with a user guide that provides detailed instructions for setup and operation. Designers can quickly integrate the TPS51020EVM-001 into their system and begin testing, facilitating a faster and more efficient design process.
