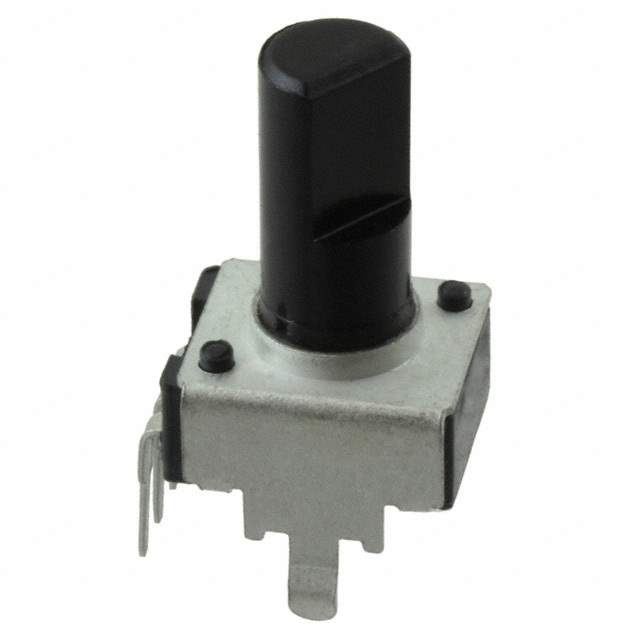

Same model may have multiple batches, images only for reference.

PTV09A-4020F-B103

Name: PTV09A-4020F-B103
Brand: Bourns Inc.
SKU: 984558
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTV09A-4020F-B103
Manufacturer	Bourns Inc.
Catalog	Potentiometers, Variable Resistors
Description	POT 10K OHM 1/20W CARBON LINEAR / 10k Ohm 1 Gang Linear Through Hole, Snap In Potentiometer None 1.0 Kierros Carbon 0.05W, 1/20W PC Pins, Board Locks
Datasheet	PTV09A-4020F-B103 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Rotary Potentiometers, Rheostats
Mfr	Bourns Inc.
Series	Pro Audio PTV09
Package	Tray
Resistance (Ohms)	10k
Tolerance	±20%
Power (Watts)	0.05W, 1/20W
Built in Switch	None
Number of Turns	1
Taper	Linear
Number of Gangs	1
Adjustment Type	Top Adjustment
Rotation	280°
Resistive Material	Carbon
Termination Style	PC Pins, Board Locks
Actuator Type	Flatted
Actuator Length	0.787" (20.00mm)
Actuator Diameter	0.236" (6.00mm)
Mounting Type	Through Hole, Snap In
Size - Body	Rectangular - 0.433" x 0.382" Face (11.00mm x 9.70mm)
Base Product Number	PTV09A
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	PTV09A4020FB103
Standard Package	100
Win Source Part Number	984558-PTV09A-4020F-B103
Ultra Librarian 3D Model	Ultra Librarian PTV09A-4020F-B103 CAD Model

Alternative Products

Description

The Bourns Inc. Pro Audio PTV09 is a rotary potentiometer with a resistance of 10k ohms and manufactured by Bourns Inc..

Resistance: 10k ohms
Tolerance: ±20%
Power: 0.05W, 1/20W
Actuator Type: Flatted
Actuator Length: 0.787 inches (20.00mm)
Adjustment Type: Top Adjustment
Resistive Material: Carbon
Taper: Linear
Number of Gangs: 1
Package: Through-Hole Snap-In
Body Size: Rectangular - 0.433 inches x 0.382 inches face (11.00mm x 9.70mm)
Rotation: 280°
Actuator Diameter: 0.236 inches (6.00mm)
Type: Rotary Potentiometer
