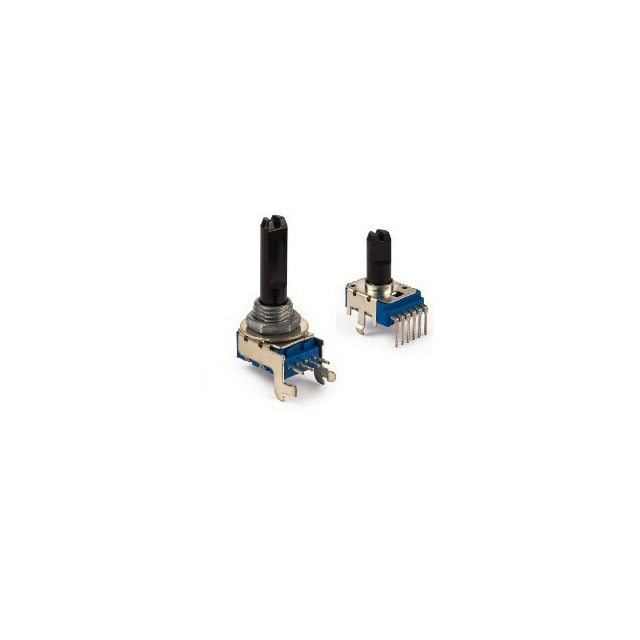

Same model may have multiple batches, images only for reference.
PTV09A-4225F-B203 Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PTV09A-4225F-B203

Part No PTV09A-4225F-B203
Manufacturer Bourns Inc.
Catalog Rotary Potentiometers, Rheostats
Description POT 20K OHM 1/20W CARBON LINEAR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance (Ohms) 20k
Tolerance ±20%
Power (Watts) 0.05W, 1/20W
Built in Switch Detent
Number of Turns 1.0
Taper Linear
Number of Gangs 1
Adjustment Type Top Adjustment
Rotation 280°
Resistive Material Carbon
Termination Style PC Pins, Board Locks
Actuator Type Flatted
Actuator Length 0.984" (25.00mm)
Actuator Diameter 0.236" (6.00mm)
Mounting Type Through Hole, Snap In
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1573832-PTV09A-4225F-B203
Ultra Librarian 3D Model Ultra Librarian PTV09A-4225F-B203 CAD Model
