Same model may have multiple batches, images only for reference.

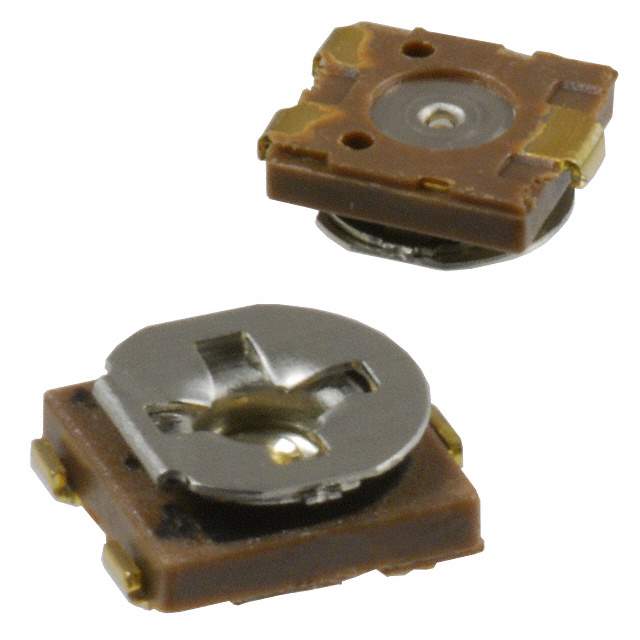

PVZ3G221C01R00 Real Image
Same model may have multiple batches, images only for reference.

PVZ3G221C01R00

Part No PVZ3G221C01R00
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 220 OHM 0.1W SMD
Datasheet
PVZ3G221C01R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Cut Reel
Status Obsolete(EOL)
Resistance (Ohms) 220
Power (Watts) 0.1W, 1/10W
Tolerance ±30%
Temperature Coefficient ±500ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Carbon
Mounting SMD (SMT)
Termination Style J Lead
Dimension Square - 0.122" x 0.122" Face x 0.045" H (3.10mm x 3.10mm x 1.15mm)
Win Source Part Number 1090822-PVZ3G221C01R00
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Test & Measurement, Medical, Portable Devices
Ultra Librarian 3D Model Ultra Librarian PVZ3G221C01R00 CAD Model

Description

The 1090822-PVZ3G221C01R00 from Bourns Inc. is an obsolete (EOL) carbon film potentiometer with a power rating of 0.1W and a resistance of 220 ohms.

  • Potentiometer Type: carbon film
  • Power Rating: 0.1W
  • Resistance: 220 ohms
  • Turns: 1
  • Tolerance: ±30%
  • Temperature Coefficient: ±500ppm/°C
  • Shape: square
  • Face Dimensions: 0.122" x 0.122"
  • Height: 0.045" (3.10mm x 3.10mm x 1.15mm)
  • Category: potentiometers and variable resistors
  • Status: obsolete
  • Supply and Demand Status: balance
  • Applications: test & measurement, medical, and portable devices
