Same model may have multiple batches, images only for reference.

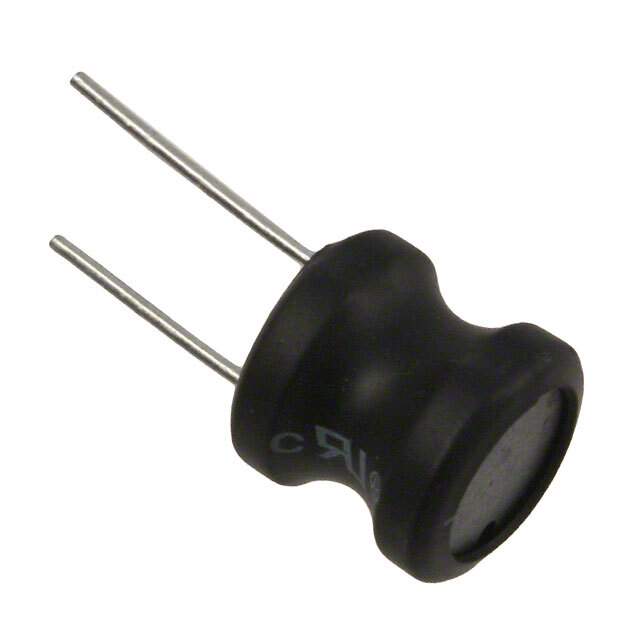

RLB1314-103KL Real Image
Same model may have multiple batches, images only for reference.

RLB1314-103KL

Part No RLB1314-103KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 10MH 100MA 12 OHM TH / 10 mH Unshielded Drum Core, Wirewound Inductor 100 mA 12Ohm Max Radial, Vertical Cylinder
Datasheet
RLB1314-103KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series RLB
Package Bulk
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 mH
Tolerance ±10%
Current Rating (Amps) 100 mA
Shielding Unshielded
DC Resistance (DCR) 12Ohm Max
Q @ Freq 80 @ 79.6kHz
Frequency - Self Resonant 530kHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Dimension 0.461" Dia (11.70mm)
Height - Seated (Max) 0.512" (13.00mm)
Base Product Number RLB1314
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names RLB1314103KL
Standard Package 130
Win Source Part Number 1224970-RLB1314-103KL
Ultra Librarian 3D Model Ultra Librarian RLB1314-103KL CAD Model

Description

The Bourns Inc. RLB1314-103KL is a fixed inductor with a drum core and wirewound type manufactured by Bourns Inc.

  • Shielding: unshielded
  • Inductance: 10 mH
  • Height-Seated (max): 0.512" (13.00mm)
  • Standard Package: 130
  • Tolerance: ±10%
  • Material-Core: ferrite
  • Current Rating: 100 mA
  • Inductance Frequency-Test: 1 kHz
  • MSL Level: not applicable
  • REACH Status: REACH unaffected
  • HTSUS: 8504.50.4000
