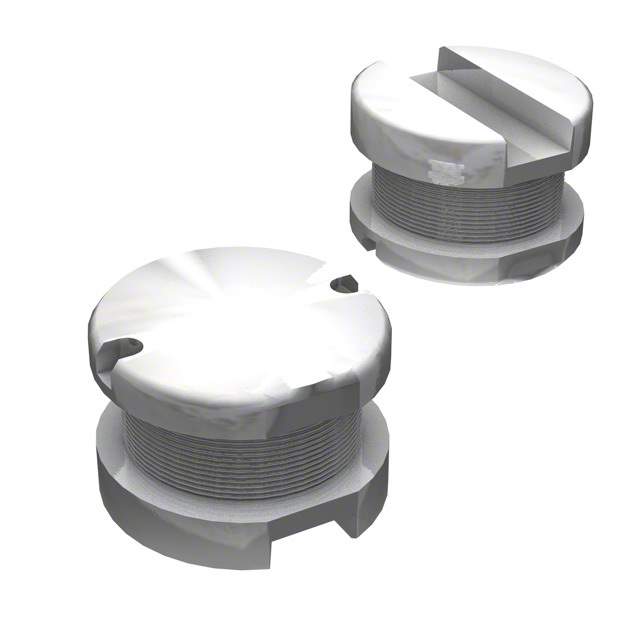

SDR0805-272KL Real Image
Same model may have multiple batches, images only for reference.

SDR0805-272KL

Part No SDR0805-272KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 2.7MH 120MA 11.8OHM SM / 2.7 mH Unshielded Drum Core, Wirewound Inductor 120 mA 11.8Ohm Max Nonstandard
Datasheet
SDR0805-272KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0805
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.7 mH
Tolerance ±10%
Current Rating (Amps) 120 mA
Current - Saturation (Isat) 180mA
Shielding Unshielded
DC Resistance (DCR) 11.8Ohm Max
Q @ Freq 31 @ 252kHz
Frequency - Self Resonant 1MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.307" L x 0.307" W (7.80mm x 7.80mm)
Height - Seated (Max) 0.209" (5.30mm)
Base Product Number SDR0805
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SDR0805-272KL-ND,SDR0805-272KLCT,SDR0805-272KLTR,SDR0805-272KLDKR
Standard Package 1,000
Win Source Part Number 1010109-SDR0805-272KL
Ultra Librarian 3D Model Ultra Librarian SDR0805-272KL CAD Model

Description

The Bourns Inc. SDR0805-272KL is a fixed inductor designed for use in surface mount applications.

  • Type: drum core, wirewound
  • Feature: unshielded
  • Inductance: 2.7 mH
  • Tolerance: ±10%
  • Maximum current rating: 120mA
  • Temperature range: -40°C to 125°C
  • Package: nonstandard size
  • Format: tape and reel format
  • Failure rate: -
  • Series: SDR0805 series
  • Frequency self-resonant: 1MHz
  • Q @ Freq: 31 @ 252kHz
