Same model may have multiple batches, images only for reference.

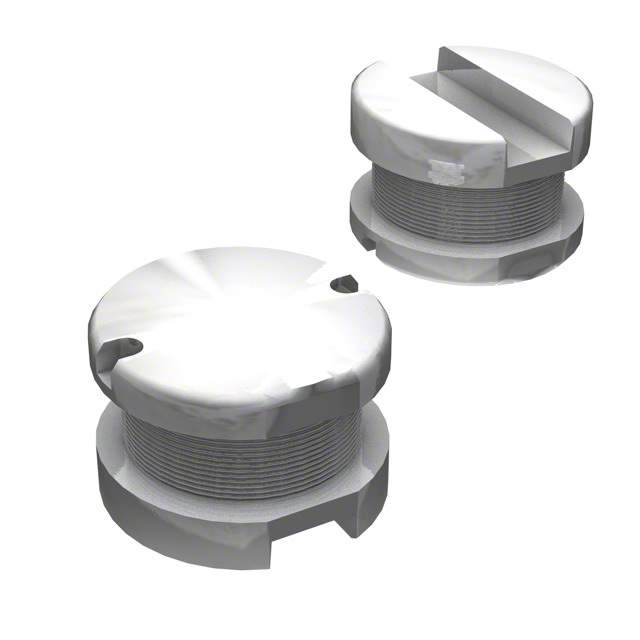

SDR0805-392KL Real Image
Same model may have multiple batches, images only for reference.

SDR0805-392KL

Part No SDR0805-392KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 3.9MH 90MA 18 OHM SMD
Datasheet
SDR0805-392KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 31 Weeks
Features 3.9 mH Unshielded Wirewound Inductor 90 mA 18Ohm Max Nonstandard
Manufacturer Bourns Inc.
Series SDR0805
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Nonstandard
Family Name SDR0805
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number SDR0805-392KLDKR, SDR0805392KL, SDR0805-392KLCT, SDR0805-392KLTR, SDR0805-392KL-ND
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 894060-SDR0805-392KL
Ultra Librarian 3D Model Ultra Librarian SDR0805-392KL CAD Model

Description

This Bourns Inc. SDR0805 series inductor is an unshielded wirewound inductor that has a 3.9 mH inductance and can handle a maximum current of 90 mA with a resistance of 18Ohm.

  • Inductance: 3.9 mH
  • Maximum Current: 90 mA
  • Resistance: 18Ohm
  • Package: Reel-TR
  • Mounting: Surface Mount
  • Operating Temperature: -40°C to 125°C
  • Family Name: SDR0805
  • Category: Inductors
  • Supply and Demand Status: Balanced
  • Quantity per package: 1000
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
  • Estimated Production Lead Time: 31 weeks
