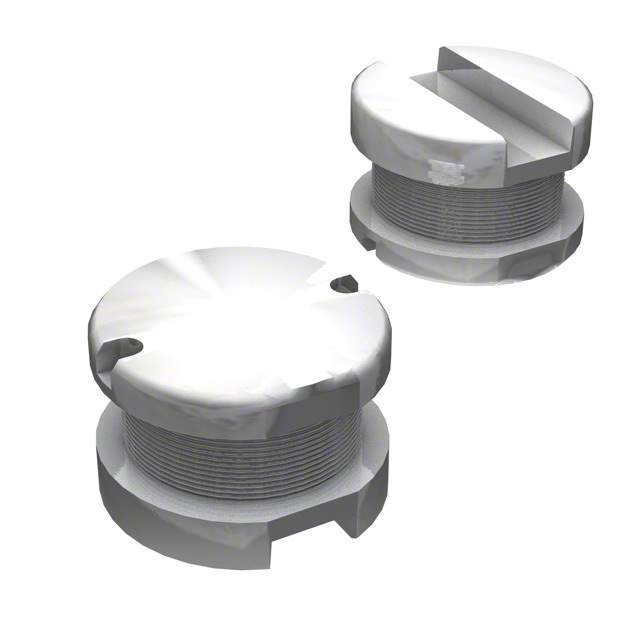

SDR0805-5R6ML Real Image
Same model may have multiple batches, images only for reference.

SDR0805-5R6ML

Part No SDR0805-5R6ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 5.6UH 3.5A 40 MOHM SMD
Datasheet
SDR0805-5R6ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 5.6μH
Tolerance ±20%
Current Rating 3.5A
Current - Saturation 4.6A
DC Resistance (DCR) 40 mOhm Max
Q @ Freq 31 @ 7.96MHz
Frequency - Self Resonant 34MHz
Temperature Range - Operating -40°C to 125°C
Frequency - Test 1kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.209" (5.30mm)
Win Source Part Number 1095081-SDR0805-5R6ML
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SDR0805-5R6ML CAD Model

Description

Bourns Inc. presents the SDR0805-5R6ML, a wirewound inductor.

  • Current Rating: 3.5A
  • Inductance: 5.6μH
  • Height: 0.209" (5.30mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Current Saturation: 4.6A
  • Q @ Freq: 31 @ 7.96MHz
  • Frequency Self-Resonant: 34MHz
  • Frequency Test: 1kHz
  • Category: Inductors, Coils, Chokes
  • DC Resistance (DCR): 40 mOhm Max
  • Operating Temperature Range: -40°C to 125°C
  • Packaging: Reel
  • Popularity: Medium
  • Supply and Demand Status: Balanced
