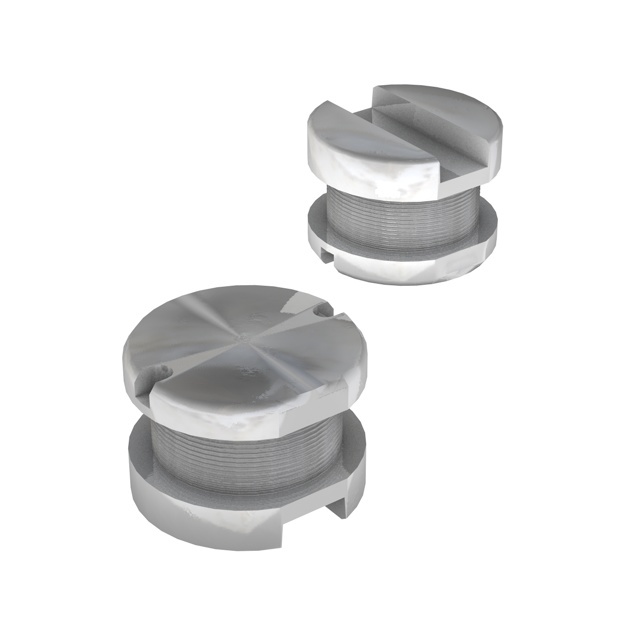

Same model may have multiple batches, images only for reference.
SDR1307-560KL Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SDR1307-560KL

Part No SDR1307-560KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 56UH 2.5A 95 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 56 µH
Tolerance ±10%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 3.8A
Shielding Unshielded
DC Resistance (DCR) 95mOhm Max
Q @ Freq 22 @ 2.52MHz
Frequency - Self Resonant 7.2MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Case / Package Nonstandard
Size / Dimension 0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max) 0.287\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1533228-SDR1307-560KL
Ultra Librarian 3D Model Ultra Librarian SDR1307-560KL CAD Model
