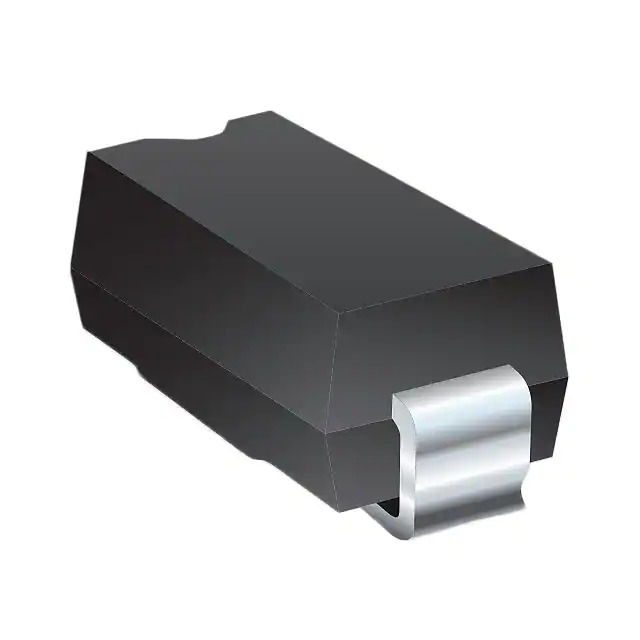

Same model may have multiple batches, images only for reference.

SMBJ150CA-Q

Name: SMBJ150CA-Q
Brand: Bourns Inc.
SKU: 1379909
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMBJ150CA-Q
Manufacturer	Bourns Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 150VWM 243VC DO214AA
Datasheet	SMBJ150CA-Q Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Bourns Inc.
Series	Automotive, AEC-Q101, SMBJ-Q
Package	Tape & Reel
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	150V
Voltage - Breakdown (Min)	167V
Voltage - Clamping (Max) @ Ipp	243V
Current - Peak Pulse (10/1000µs)	2.5A
Power - Peak Pulse	600W
Power Line Protection	No
Applications	Automotive, Telecom
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	SMB (DO-214AA)
Base Product Number	SMBJ150
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1379909-SMBJ150CA-Q
Ultra Librarian 3D Model	Ultra Librarian SMBJ150CA-Q CAD Model

Alternative Products

Description

The SMBJ150CA-Q is a surface mount TVS diode from the SMBJ-Q series manufactured by Bourns Inc.

Type: Zener
Series: SMBJ-Q
Mounting Type: Surface Mount
Voltage - Reverse Standoff (Typ): 150V
Voltage - Breakdown (Min): 167V
Voltage - Clamping (Max) @ Ipp: 243V @ 2.5A (10/1000µs)
Operating Temperature: -55°C to 150°C (TJ)
Applications: Automotive, Telecom
Package / Case: DO-214AA, SMB
Packaging: Tape & Reel (TR)
REACH Status: Affected
ECCN: EAR99
