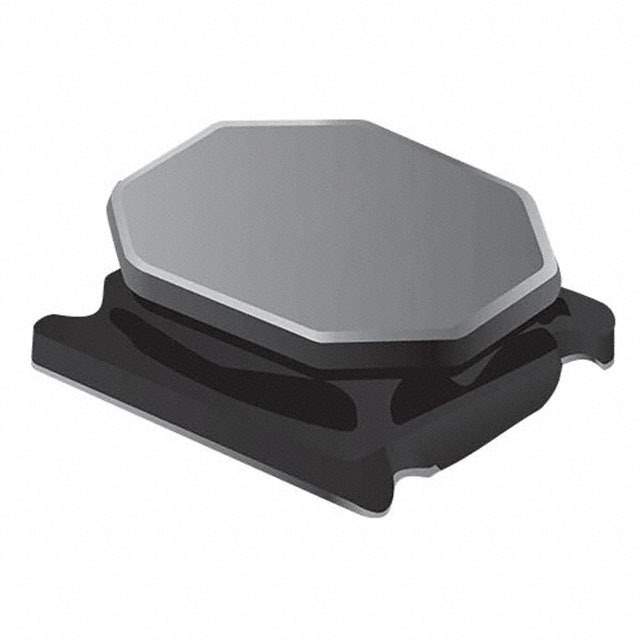

SRN5020-220M Real Image
Same model may have multiple batches, images only for reference.

SRN5020-220M

Part No SRN5020-220M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 1A 312 MOHM SMD / 22 µH Semi-Shielded Drum Core, Wirewound Inductor 1 A 312mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN5020
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 900mA
Shielding Semi-Shielded
DC Resistance (DCR) 312mOhm Max
Q @ Freq 11 @ 2.52MHz
Frequency - Self Resonant 13MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRN5020
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRN5020-220MCT,SRN5020-220MTR,SRN5020220M,SRN5020-220MDKR
Standard Package 2,000
Win Source Part Number 1184084-SRN5020-220M
Ultra Librarian 3D Model Ultra Librarian SRN5020-220M CAD Model

Description

The SRR6028-101Y is a shielded wirewound inductor manufactured by Bourns Inc. The product has an inductance of 100µH with a current rating of 1A. It has a standard package of 500 and is available in reel - TR packaging. The product has an unlimited MSL level and an estimated production lead time of 33 weeks. The product is REACH unaffected.
