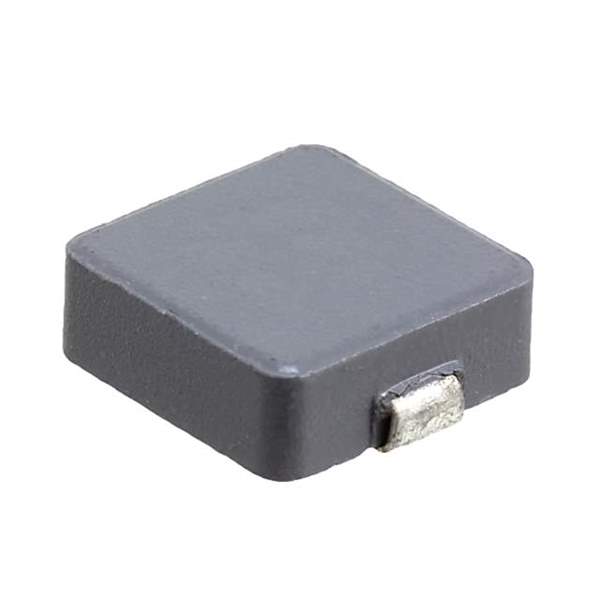

Same model may have multiple batches, images only for reference.

SRP1038A-150M

Name: SRP1038A-150M
Brand: Bourns Inc.
SKU: 1118804
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP1038A-150M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 15UH 6.25A 45 MOHM SMD / 15 µH Shielded Drum Core, Wirewound Inductor 6.25 A 45mOhm Max Nonstandard
Datasheet	SRP1038A-150M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP1038A
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Carbonyl Powder
Inductance	15 µH
Tolerance	±20%
Current Rating (Amps)	6.25 A
Current - Saturation (Isat)	10A
Shielding	Shielded
DC Resistance (DCR)	45mOhm Max
Q @ Freq	20 @ 100kHz
Frequency - Self Resonant	9MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max)	0.157" (4.00mm)
Base Product Number	SRP1038A
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	SRP1038A-150MTR,SRP1038A-150MCT,SRP1038A-150MDKR
Standard Package	500
Win Source Part Number	1118804-SRP1038A-150M
Ultra Librarian 3D Model	Ultra Librarian SRP1038A-150M CAD Model

Alternative Products

Description

The Bourns Inc. 1118804-SRP1038A-150M is a drum core, wirewound inductor that comes with a shielding feature.

Inductance: 15 µH
Tolerance: ±20%
Frequency Self-Resonant: 9MHz
Q@Freq: 20@100kHz
DC Resistance (DCR): 45mOhm Max
Current Rating (Amps): 6.25 A
AEC-Q200 Rated: Yes
Temperature Range: -40°C to 150°C
Package/Case: Nonstandard
Dimension: 0.433" L x 0.394" W (11.00mm x 10.00mm)
