Same model may have multiple batches, images only for reference.

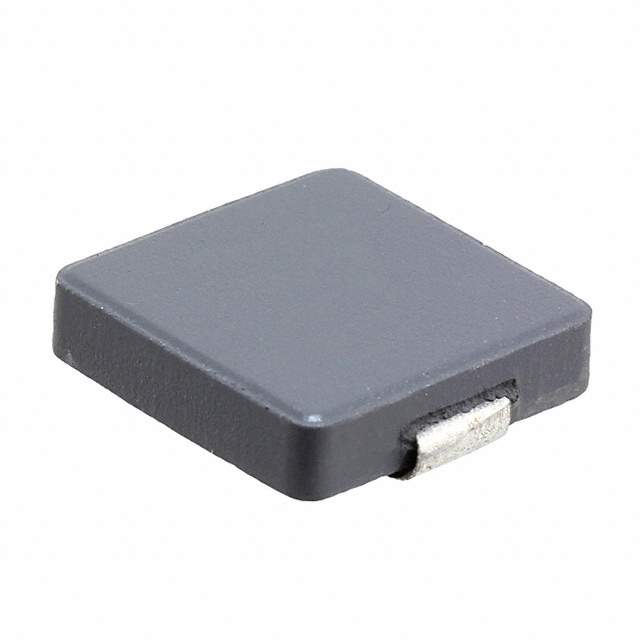

SRP1238A-1R5M Real Image
Same model may have multiple batches, images only for reference.

SRP1238A-1R5M

Part No SRP1238A-1R5M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 1.5UH 19A 5.5 MOHM SMD / 1.5 µH Shielded Drum Core, Wirewound Inductor 19 A 5.5mOhm Max Nonstandard
Datasheet
SRP1238A-1R5M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1238A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 19 A
Current - Saturation (Isat) 35A
Shielding Shielded
DC Resistance (DCR) 5.5mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 30MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max) 0.138" (3.50mm)
Base Product Number SRP1238A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRP1238A-1R5MDKR,SRP1238A-1R5MCT,SRP1238A-1R5MTR
Standard Package 500
Win Source Part Number 1095960-SRP1238A-1R5M
Ultra Librarian 3D Model Ultra Librarian SRP1238A-1R5M CAD Model

Description

The Bourns Inc. SRP1238A-1R5M is a drum core, wirewound inductor with a shielding feature.

  • Inductance: 1.5 µH
  • Tolerance: ±20%
  • Height of Seated Part: 0.138 inches or 3.50mm
  • Maximum DC Resistance: 5.5mOhm
  • Package: Tape and reel
  • Mounting Style: SMD (SMT)
  • Q @ Freq: 20 @ 100kHz
  • Frequency of Self-Resonant: 30MHz
  • Temperature Range: -40°C to 150°C
  • AEC-Q200: Rated
  • Current Rating: 19 A
  • Material: Carbonyl Powder material
  • Package/Case: Nonstandard
