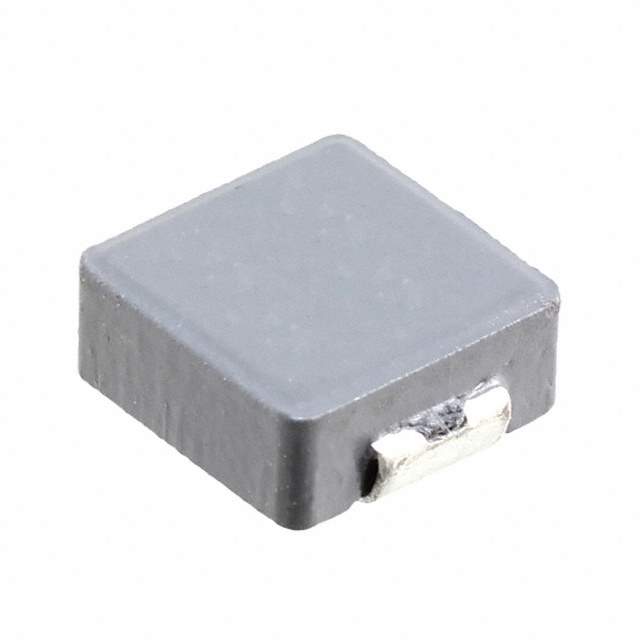

SRP7028A-220M Real Image
Same model may have multiple batches, images only for reference.

SRP7028A-220M

Part No SRP7028A-220M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 2A 190 MOHM SMD / 22 µH Shielded Drum Core, Wirewound Inductor 2 A 190mOhm Max Nonstandard
Datasheet
SRP7028A-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP7028A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 2 A
Current - Saturation (Isat) 3.5A
Shielding Shielded
DC Resistance (DCR) 190mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 10MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRP7028A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRP7028A-220M-ND,SRP7028A-220MCT,SRP7028A-220MDKR,SRP7028A-220MTR
Standard Package 1,000
Win Source Part Number 1095963-SRP7028A-220M
Ultra Librarian 3D Model Ultra Librarian SRP7028A-220M CAD Model

Description

The Bourns Inc. SRP7028A-220M is a drum core, wirewound inductor with a shielded package designed for tape and reel packaging.

  • Inductance: 22 µH
  • Maximum Seated Height: 0.118" (3.00mm)
  • Current Rating: 2A
  • Tolerance: ±20%
  • AEC-Q200: Rated
  • Material Used for the Core: Carbonyl powder
  • Package/Case: Nonstandard
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C to 150°C
  • Dimension: 0.287" L x 0.260" W (7.30mm x 6.60mm)
  • ECCN: EAR99
