Same model may have multiple batches, images only for reference.

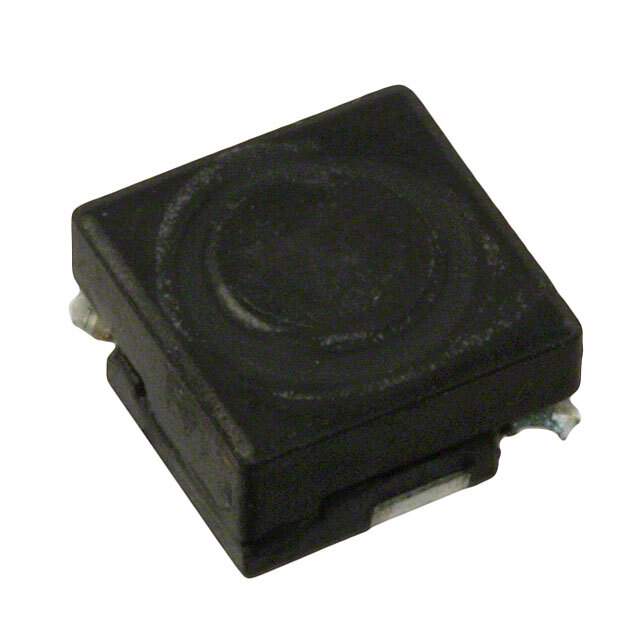

SRR0603-470KL Real Image
Same model may have multiple batches, images only for reference.

SRR0603-470KL

Part No SRR0603-470KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 47UH 500MA 550MOHM SMD / 47 µH Shielded Drum Core, Wirewound Inductor 500 mA 550mOhm Max Nonstandard, Corner Terminals
Datasheet
SRR0603-470KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0603
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±10%
Current Rating (Amps) 500 mA
Current - Saturation (Isat) 730mA
Shielding Shielded
DC Resistance (DCR) 550mOhm Max
Q @ Freq 13 @ 2.52MHz
Frequency - Self Resonant 13MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard, Corner Terminals
Dimension 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max) 0.130" (3.30mm)
Base Product Number SRR0603
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names -SRR0603-470KLTR,-SRR0603-470KLCT,-SRR0603-470KL,SRR0603-470KLCT,SRR0603-470KLTR,SRR0603470KL
Standard Package 1,000
Win Source Part Number 958388-SRR0603-470KL
Ultra Librarian 3D Model Ultra Librarian SRR0603-470KL CAD Model

Description

The SRR0603-470KL is a drum core, wirewound inductor that is shielded with a ferrite core material.

  • Inductance: 47 microhenries
  • Tolerance: ±10%
  • Maximum DC Resistance: 550 milliohms
  • Q @ Freq: 13 @ 2.52MHz
  • Frequency Self-Resonant: 13MHz
  • Package/Case: Nonstandard, Corner Terminal
  • Height Seated (Max): 0.130 inches (3.30mm)
  • Suitable for: Power supplies, DC-DC converters, and filtering circuits
  • Alternative Parts: SDR0603-470KL, SDR0503-470KL, LQH44NN470K03L, SRR0604-470KL, AIUR-07-470K, and CBC3225T470KRSRR0603-470KL
