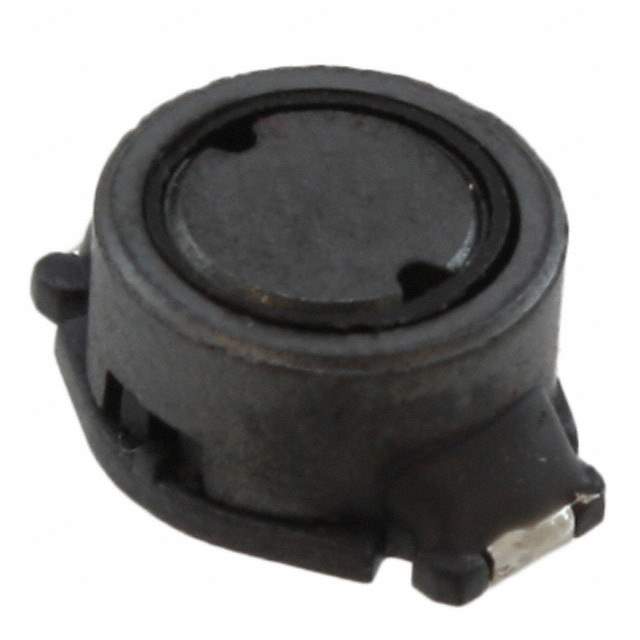

SRR0805-5R6M Real Image
Same model may have multiple batches, images only for reference.

SRR0805-5R6M

Part No SRR0805-5R6M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 5.6UH 1.95A 65 MOHM
Datasheet
SRR0805-5R6M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 5.6μH
Tolerance ±20%
Current Rating 1.95A
Current - Saturation 3.2A
DC Resistance (DCR) 65 mOhm Max
Q @ Freq 20 @ 7.96MHz
Frequency - Self Resonant 40MHz
Temperature Range - Operating -40°C to 125°C
Frequency - Test 1kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.185" (4.70mm)
Win Source Part Number 1101965-SRR0805-5R6M
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SRR0805-5R6M CAD Model

Description

The SRR0805-5R6M is a wirewound inductor manufactured by Bourns Inc.
