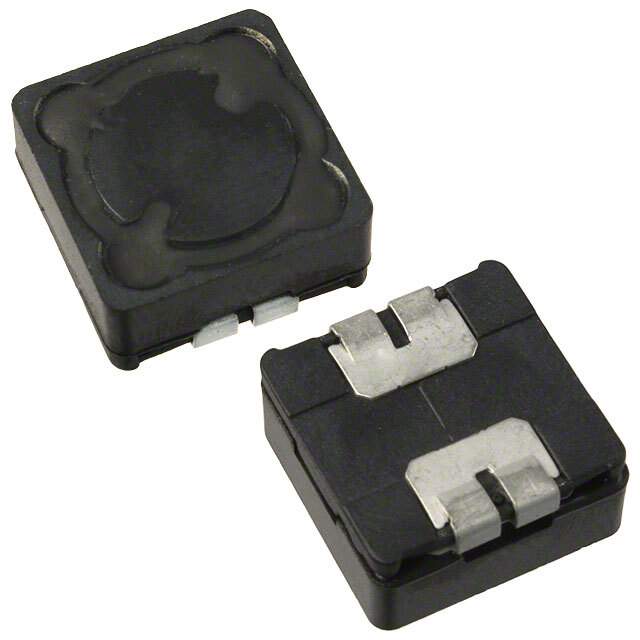

SRR1206-470YL Real Image
Same model may have multiple batches, images only for reference.

SRR1206-470YL

Part No SRR1206-470YL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 47UH 1.6A 130 MOHM SMD / Shielded High Power Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±15%
Current Rating (Amps) 1.6A
Current - Saturation 2.5A
Shielding Shielded
DC Resistance (DCR) 130mOhm Max
Q at Freq 22 at 2.52MHz
Frequency - Self Resonant 7MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Maximum) 0.256" (6.50mm)
Part Number Series SRR1206
Manufacturer Pack Quantity 600
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807427-SRR1206-470YL
Ultra Librarian 3D Model Ultra Librarian SRR1206-470YL CAD Model

Description

Bourns Inc. presents a Shielded SMD Wirewound Type Inductor with an inductance of 47μH.

  • Inductance: 47μH
  • Tolerance: ±15%
  • DC Resistance (DCR): 130mOhm Max
  • Current Saturation: 2.5A
  • Frequency Self-Resonant: 7MHz
  • Manufacturer Package: Nonstandard
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.500" L x 0.500" W (12.70mm x 12.70mm)
  • Height: 0.256" (6.50mm)
  • Part Number Series: SRR1206
  • Q @ Freq: 22 @ 2.52MHz
  • Current Rating (Amps): 1.6A
  • Inductance Frequency-Test: 1kHz
  • MSL Level: 1 (Unlimited)
