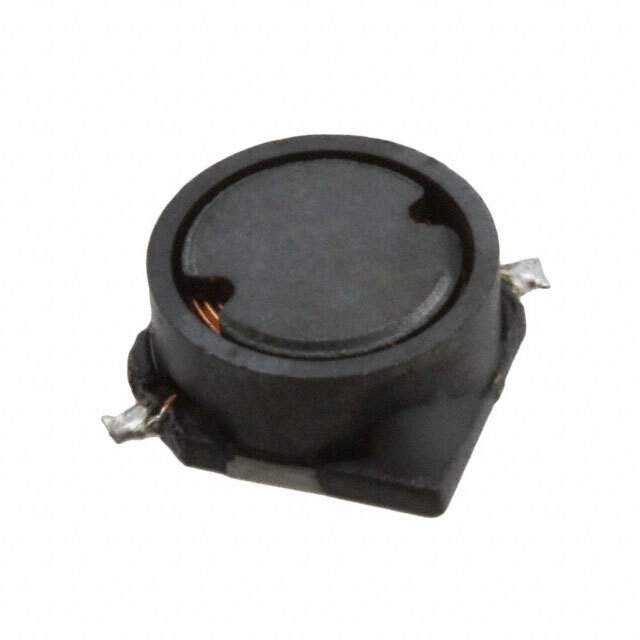

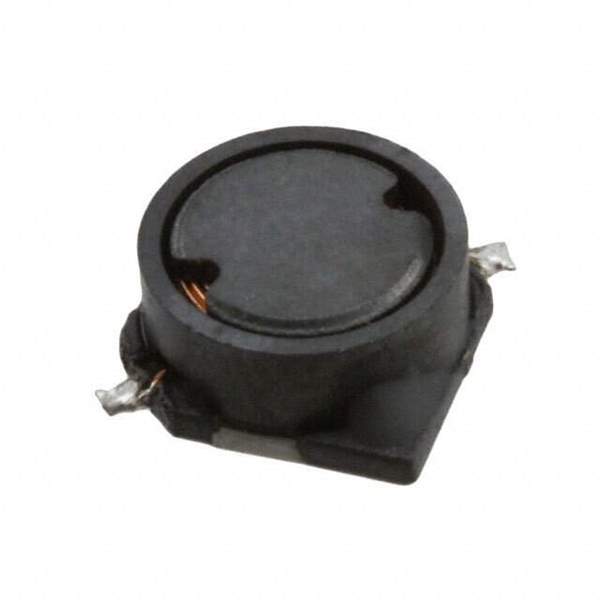

SRR7032-4R7M Real Image
Same model may have multiple batches, images only for reference.

SRR7032-4R7M

Part No SRR7032-4R7M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 2A 42 MOHM SMD / 4.7 µH Shielded Drum Core, Wirewound Inductor 2 A 42mOhm Max Nonstandard
Datasheet
SRR7032-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR7032
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 2 A
Current - Saturation (Isat) 2A
Shielding Shielded
DC Resistance (DCR) 42mOhm Max
Q @ Freq 16 @ 7.96MHz
Frequency - Self Resonant 43MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.134" (3.40mm)
Base Product Number SRR7032
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names -SRR7032-4R7M,-SRR7032-4R7M-ND,SRR7032-4R7MDKR,SRR7032-4R7MCT,SRR7032-4R7MTR,SRR70324R7M,-SRR7032-4R7MCT,-SRR7032-4R7MTR,SRR7032-4R7M-ND
Standard Package 1,500
Win Source Part Number 1001267-SRR7032-4R7M
Ultra Librarian 3D Model Ultra Librarian SRR7032-4R7M CAD Model

Description

The SRR7032-4R7M is a shielded inductor that belongs to the fixed inductors category. It is designed with a drum core and wirewound type, with a package of tape and reel.

  • Shielded: Yes
  • Core Type: Drum Core
  • Type: Wirewound
  • Packaging: Tape and Reel
  • Inductance: 4.7 µH
  • Height: 0.134" (3.40mm)
  • Tolerance: ±20%
  • Material - Core: Ferrite
  • Q @ Freq: 16 @ 7.96MHz
  • Operating Temperature: -40°C ~ 125°C
  • DC Resistance (DCR): 42mOhm Max
  • Mounting Type: SMD (SMT)
  • Current Rating: 2A
  • Package/Case: Nonstandard
  • Frequency - Self Resonant: 43MHz
