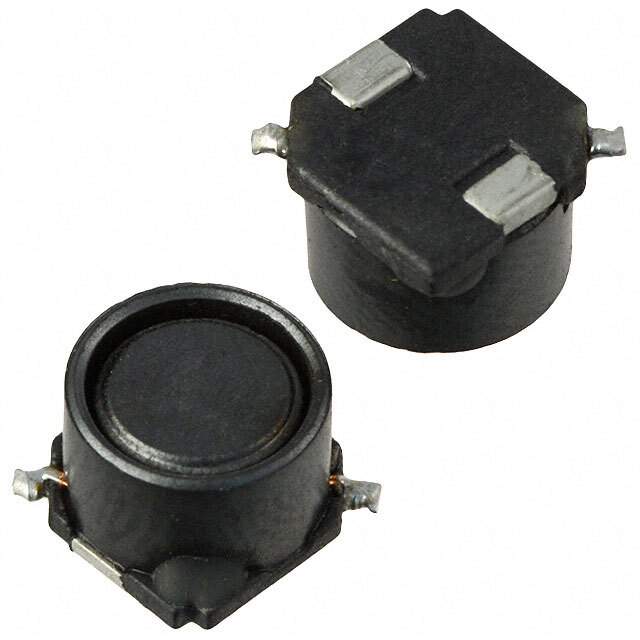

Same model may have multiple batches, images only for reference.

SRR7045-221M

Name: SRR7045-221M
Brand: Bourns Inc.
SKU: 984734
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR7045-221M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 220UH 450MA 700MOHM SM / 220 µH Shielded Drum Core, Wirewound Inductor 450 mA 700mOhm Max Nonstandard
Datasheet	SRR7045-221M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR7045
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	220 µH
Tolerance	±20%
Current Rating (Amps)	450 mA
Current - Saturation (Isat)	360mA
Shielding	Shielded
DC Resistance (DCR)	700mOhm Max
Q @ Freq	44 @ 796kHz
Frequency - Self Resonant	5MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max)	0.189" (4.80mm)
Base Product Number	SRR7045
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	-SRR7045-221MCT,-SRR7045-221M,SRR7045221M,SRR7045-221M-ND,-SRR7045-221M-ND,SRR7045-221MCT,SRR7045-221MTR,-SRR7045-221MTR
Standard Package	1,000
Win Source Part Number	984734-SRR7045-221M
Ultra Librarian 3D Model	Ultra Librarian SRR7045-221M CAD Model

Alternative Products

Description

The Bourns Inc. SRR7045-221M is a drum core wirewound inductor with a ferrite core material.

Shielding: Yes
Inductance: 220 µH
Tolerance: ±20%
Current Rating: 450 mA
DC Resistance: 700mOhm Max
Q @ Freq: 44 @ 796kHz
Frequency Self-Resonant: 5MHz
Package: Tape & Reel (TR), Cut Tape (CT)
Package/Case: Nonstandard
Height Seated (Max): 0.189" (4.80mm)
Dimension: 0.276" L x 0.276" W (7.00mm x 7.00mm)
Operating Temperature: -40°C ~ 125°C
Base Product Number: SRR7045
