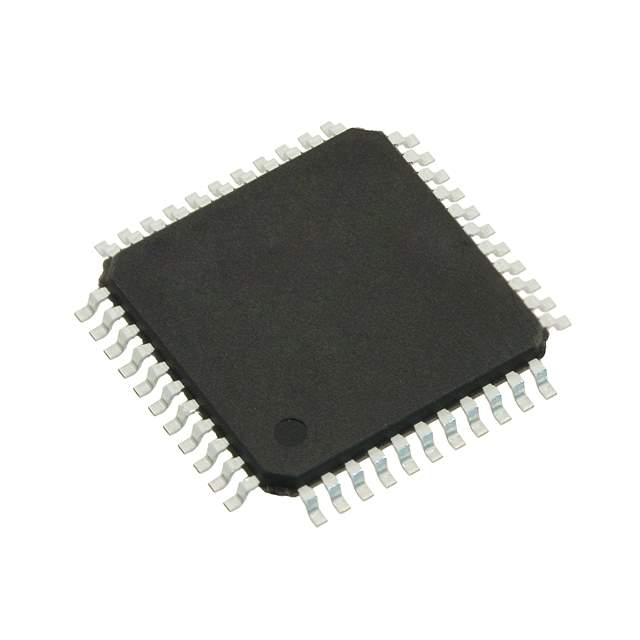

XC9536-5VQ44C Real Image
Same model may have multiple batches, images only for reference.

XC9536-5VQ44C

Part No XC9536-5VQ44C
Manufacturer Xilinx Inc.
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 36MC 5NS 44VQFP
Datasheet
XC9536-5VQ44C Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Xilinx Inc.
Packaging Tray
Status Obsolete(EOL)
Programmable Type In System Programmable (min 10K program/erase cycles)
Delay Time tpd(1) Max 5.0ns
Voltage Supply - Internal 4.75 V to 5.25 V
Number of Logic Elements/Blocks 2
Number of Macrocells 36
Number of Gates 800
Number of I/O 34
Temperature Range - Operating 0°C to 70°C (TA)
Mounting SMD (SMT)
Case / Package 44-VQFP (10x10)
Win Source Part Number 087671-XC9536-5VQ44C
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XC9536-5VQ44C CAD Model

Description

The XC9536-5VQ44C is an in-system programmable CPLD with a maximum delay time of 5.0ns and a voltage supply range of 4.75V to 5.25V.

  • I/O: 34
  • Gates: 800
  • Logic Elements/Blocks: 2
  • Macrocells: 36
  • Package: 44-VQFP (10x10) tray
  • Status: obsolete (EOL)
  • Popularity: high
