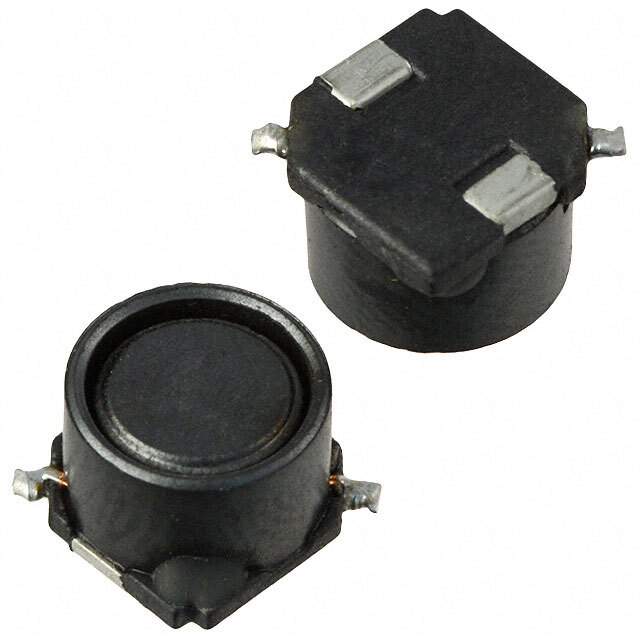

SRR7045-330M Real Image
Same model may have multiple batches, images only for reference.

SRR7045-330M

Part No SRR7045-330M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 33UH 1.15A 115MOHM SMD / 33 µH Shielded Drum Core, Wirewound Inductor 1.15 A 115mOhm Max Nonstandard
Datasheet
SRR7045-330M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR7045
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 33 µH
Tolerance ±20%
Current Rating (Amps) 1.15 A
Current - Saturation (Isat) 900mA
Shielding Shielded
DC Resistance (DCR) 115mOhm Max
Q @ Freq 25 @ 2.52MHz
Frequency - Self Resonant 12MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SRR7045
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names -SRR7045-330M,-SRR7045-330MCT,SRR7045-330MTR,-SRR7045-330MTR,SRR7045-330MDKR,-SRR7045-330M-ND,SRR7045-330MCT,SRR7045330M,SRR7045-330M-ND
Standard Package 1,000
Win Source Part Number 1165124-SRR7045-330M
Ultra Librarian 3D Model Ultra Librarian SRR7045-330M CAD Model

Description

The 1165124-SRR7045-330M from Bourns Inc. is a fixed inductor that belongs to the inductors, coils, chokes category.

  • Type: Drum core, wirewound
  • Shielded: Yes
  • Inductance: 33 microhenries
  • Tolerance: +/-20 percent
  • Maximum DC Resistance: 115 milliohms
  • Package: 1,000 pieces
  • Mounting: SMD (SMT)
