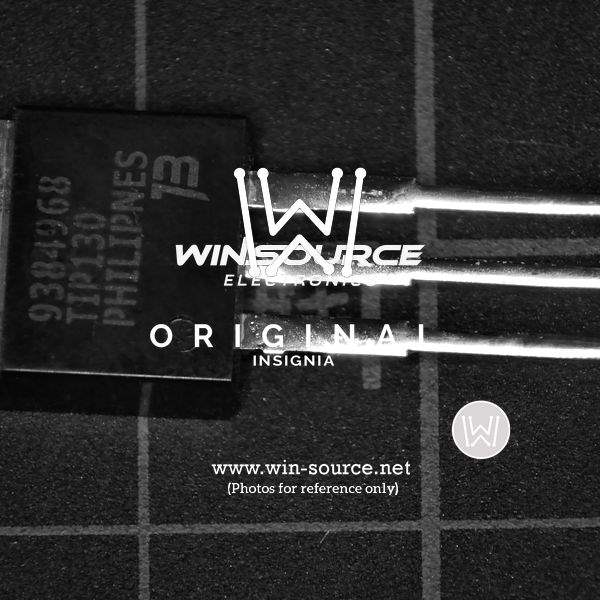

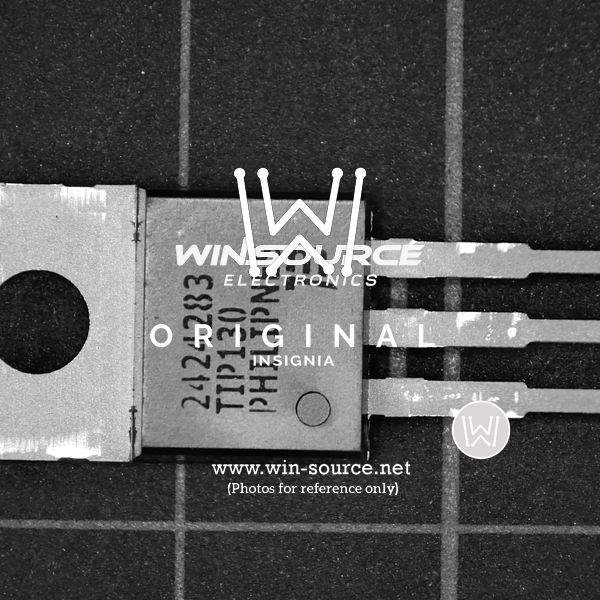

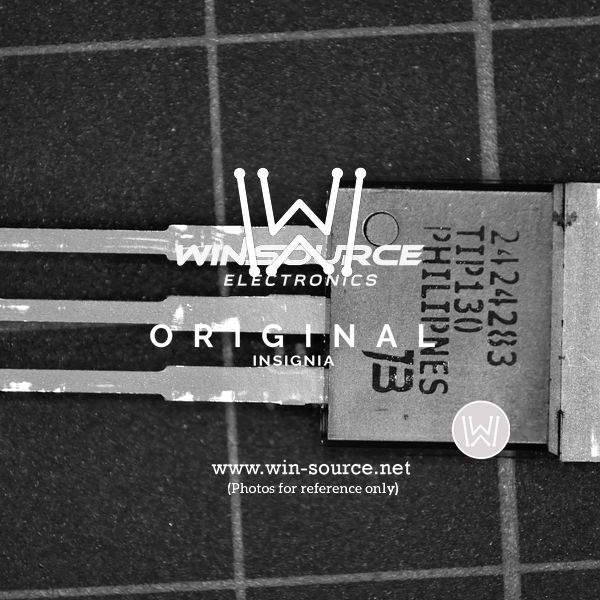

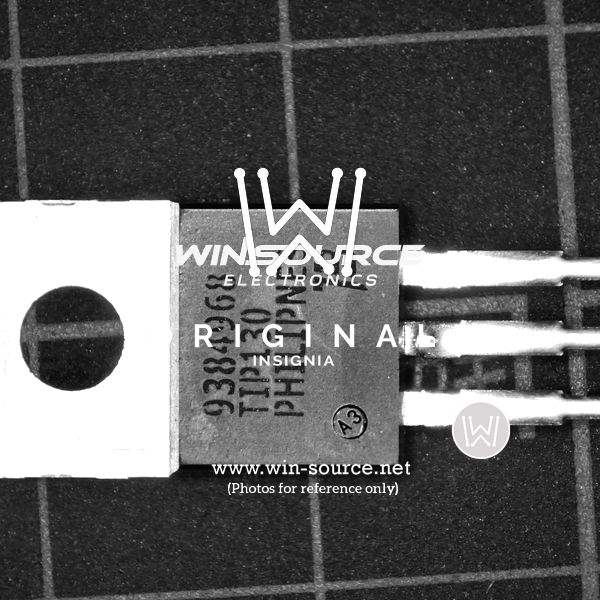

TIP130-S Real Image1 TIP130-S Real Image2 TIP130-S Real Image3 TIP130-S Real Image4
Same model may have multiple batches, images only for reference.
TIP130-S Real Image1 TIP130-S Real Image2 TIP130-S Real Image3 TIP130-S Real Image4
TIP130-S Real Image1 TIP130-S Real Image2 TIP130-S Real Image3 TIP130-S Real Image4
Same model may have multiple batches, images only for reference.

TIP130-S

Part No TIP130-S
Manufacturer Bourns Inc.
Description Trans Darlington NPN 60V 8A 3-Pin(3+Tab) TO-220
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package TO-220
Collector Base Voltage (VCBO) 60 V
Collector Emitter Saturation Voltage 2 V
Collector Emitter Voltage (VCEO) 60 V
Element Configuration Single
Emitter Base Voltage (VEBO) 5 V
Max Collector Current 8 A
Max Operating Temperature 150 °C
Min Operating Temperature -65 °C
Mount Through Hole
Number of Elements 1
Polarity NPN
Radiation Hardening No
RoHS Compliant
Win Source Part Number 1134988-TIP130-S
Categories Custom Parts
Manufacturer Bourns Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TIP130-S CAD Model

Description

The Bourns Inc. TIP130-S is an NPN transistor with a collector base voltage (VCBO) of 60 V, collector emitter voltage (VCEO) of 60 V, and emitter base voltage (VEBO) of 5 V.

  • Collector Base Voltage (VCBO): 60 V
  • Collector Emitter Voltage (VCEO): 60 V
  • Emitter Base Voltage (VEBO): 5 V
  • Maximum Collector Current: 8 A
  • Collector Emitter Saturation Voltage: 2 V
  • Category: Custom Parts
  • Popularity: Medium
  • RoHS Compliance: Compliant
