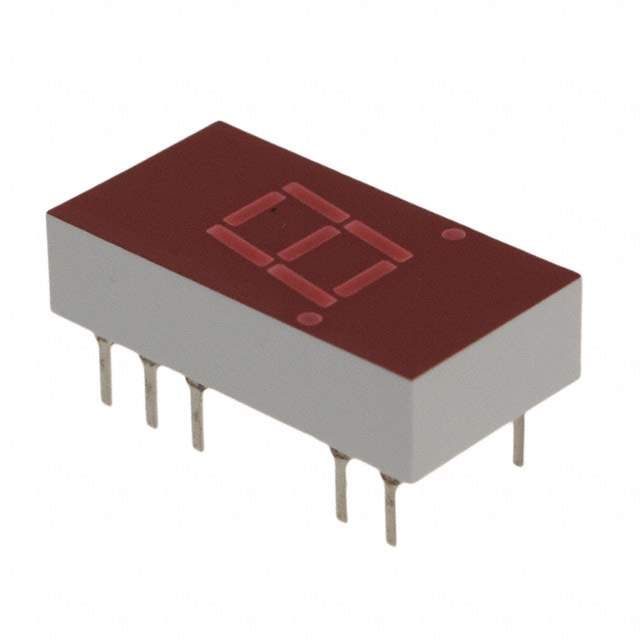

5082-7611 Real Image
Same model may have multiple batches, images only for reference.

5082-7611

Part No 5082-7611
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description LED 7-SEG 7.6MM CA HE RED RHD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Number of Characters 1
Digit/Alpha Size 0.30" (7.62mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Forward Voltage 2.1V
Current - Test 20mA
Millicandela Rating 0.8mcd
Wavelength - Peak 635nm
Power Dissipation (Max) 105mW
Dimension 14-DIP (0.300", 7.62mm), 10 Leads
Win Source Part Number 006296-5082-7611
Popularity Medium
Supply and Demand Status Limited
Quantity per package 200
Ultra Librarian 3D Model Ultra Librarian 5082-7611 CAD Model

Description

Product Description

The 5082-7611 offers a reliable and compact LED segment display designed for applications requiring precise and clear alphanumeric display capabilities. This module is engineered for seamless adaptability and integrates easily into digitally controlled systems.

Applications

  • Instrumentation panels
  • Home appliances
  • Medical devices
  • Communication equipment

Features and Benefits

  • Compact Size: Optimized for applications where space is a premium.
  • Durability: Designed with long-lasting materials ensuring a reliable performance.
  • Easy to Use: Simplified design for user-friendly installation and integration.

The 5082-7611 is an ideal solution for projects seeking efficiency and quality, greatly enhancing product displays and user interfaces.
