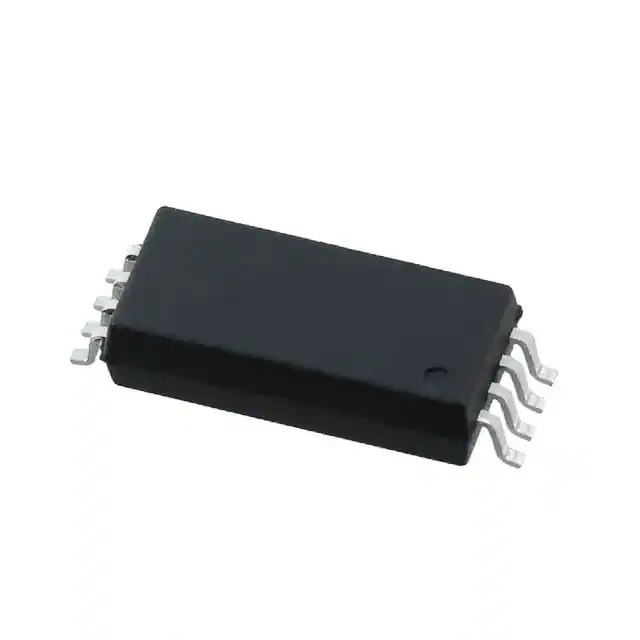

Same model may have multiple batches, images only for reference.
ACNT-H87A-500E Broadcom Limited
Same model may have multiple batches, images only for reference.

ACNT-H87A-500E

Part No ACNT-H87A-500E
Manufacturer Broadcom Limited
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP ISOLATION 1 CIRC 8SO / Isolation Amplifier 1 Circuit Differential 8-SO Stretched
Datasheet
ACNT-H87A-500E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Mfr Broadcom Limited
Series -
Package Tape & Reel
Product Status Active
Amplifier Type Isolation
Number of Circuits 1
Output Type Differential
Slew Rate -
-3db Bandwidth 100 kHz
Current - Input Bias 1.5 pA
Voltage - Input Offset 300 µV
Current - Supply 10.5mA
Current - Output / Channel 30 mA
Voltage - Supply Span (Min) 3 V
Voltage - Supply Span (Max) 5.5 V
Temperature Range - Operating -40°C ~ 110°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.535", 13.60mm Width)
Supplier Device Package 8-SO Stretched
Base Product Number ACNT-H87
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 1357444-ACNT-H87A-500E
Ultra Librarian 3D Model Ultra Librarian ACNT-H87A-500E CAD Model

Description

The ACNT-H87A-500E is a linear amplifier for instrumentation, OP amps, and buffer amps applications from Broadcom Limited. It comes in an 8-SOIC package and operates in a temperature range of -40°C to 110°C.

  • Package: 8-SOIC
  • Temperature Range: -40°C to 110°C
  • Voltage Supply: 3V to 5.5V
  • Current Supply: 10.5mA
  • Output Type: Differential
  • Current Output: 30mA
  • Circuits: Single
  • -3db Bandwidth: 100kHz
