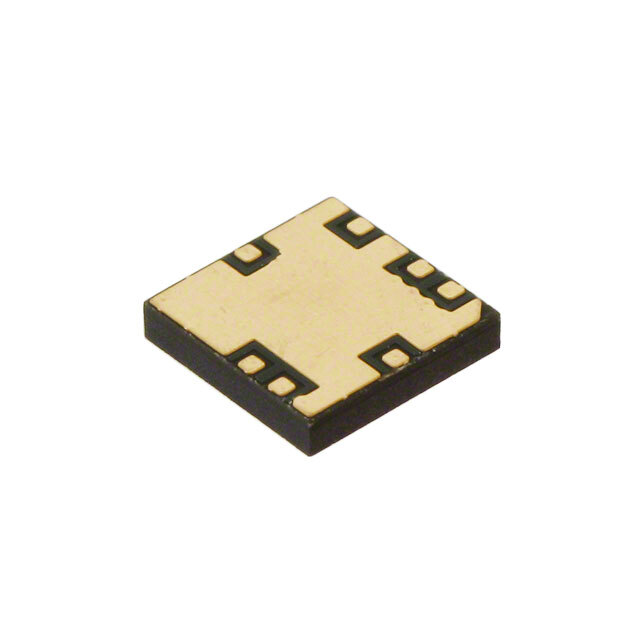

ALM-80210-BLKG Broadcom Limited ALM-80210-BLKG Real Image
Same model may have multiple batches, images only for reference.

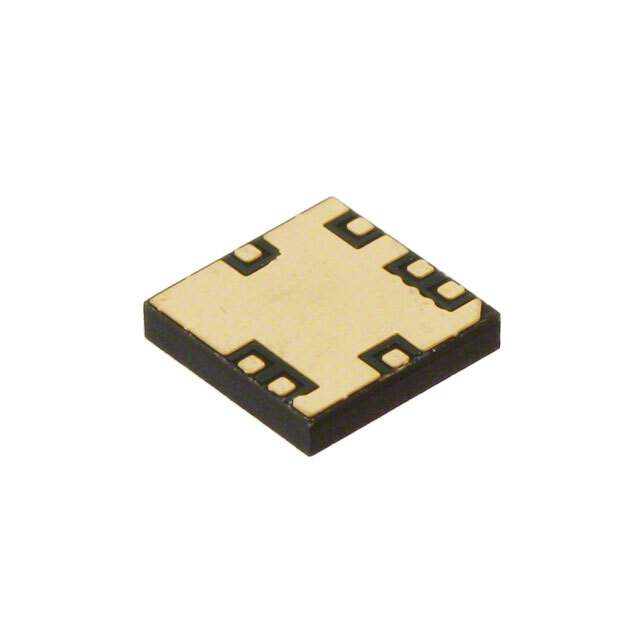

ALM-80210-BLKG Broadcom Limited ALM-80210-BLKG Real Image
ALM-80210-BLKG Broadcom Limited ALM-80210-BLKG Real Image
Same model may have multiple batches, images only for reference.

ALM-80210-BLKG

Part No ALM-80210-BLKG
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC AMP VGA ANLG 0.25W 10MCOB / RF Amp Module Single Gain Amp 2.7GHz 5.5V 10-Pin MCOB Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Bulk
Frequency 1.6GHz ~ 2.7GHz
P1dB 23.3dBm (213.8mW)
Gain 9.5dB
Noise Figure 5.7dB
RF Type CDMA, LTE, W-CDMA, WiMAX
Operating Supply Voltage 5V
Operating Supply Current 112mA
Test Frequency 2.5GHz
Package 10-SMD Module, No Lead
Manufacturer Package 10-MCOB (5x5)
Win Source Part Number 768411-ALM-80210-BLKG
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name ALM-80210-BLKG
Introduction Date July 16, 2009
ECCN EAR99
Country of Origin China, Malaysia
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ALM-80210-BLKG CAD Model

Description

The Broadcom Limited 768411-ALM-80210-BLKG is a medium popularity 10-SMD module RF amplifier.

  • Frequency Range: 1.6GHz to 2.7GHz
  • Test Frequency: 2.5GHz
  • Gain: 9.5dB
  • Noise Figure: 5.7dB
  • Operating Supply Voltage: 5V
  • Current: 112mA
  • P1dB: 23.3dBm (213.8mW)
  • Applications: CDMA, LTE, W-CDMA, WiMAX RF/IF and RFID
  • Package: 10-MCOB (5x5)
  • Introduction Date: July 16, 2009
