Same model may have multiple batches, images only for reference.

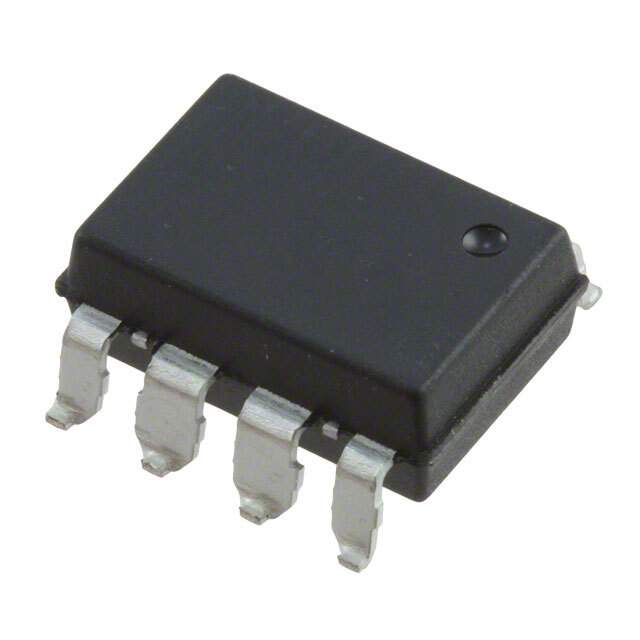

ASSR-4128-302E Real Image
Same model may have multiple batches, images only for reference.

ASSR-4128-302E

Part No ASSR-4128-302E
Manufacturer Broadcom Limited
Catalog Solid State Relays
Description RELAY SSR DPST .10A 8SMD GW
Datasheet
ASSR-4128-302E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Circuit DPST (2 Form A)
Output Type AC, DC
Max On Resistance 35 Ohm
Load Current 100mA
Voltage - Input 1.3VDC
Voltage - Load 0 to 400 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 8-DIP Gull Wing
Relay Type Relay
Win Source Part Number 1018688-ASSR-4128-302E
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian ASSR-4128-302E CAD Model

Description

The ASSR-4128-302E from Broadcom Limited is a DPST relay with AC and DC output types.

  • Manufacturer: Broadcom Limited
  • Relay Type: DPST
  • Output Type: AC and DC
  • Load Current: 100mA
  • Voltage Load Range: 0 to 400 V
  • Voltage Input: 1.3VDC
  • Maximum On Resistance: 35 Ohm
  • Package Type: 8-DIP Gull Wing
  • Termination Style: Gull Wing
  • Supply Voltage Range: 4.75 V to 5.25 V
