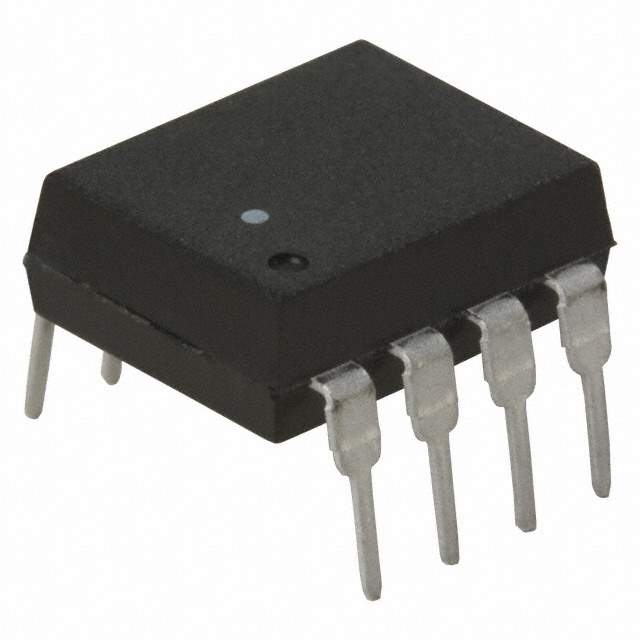

HCNW4562-000E Real Image
Same model may have multiple batches, images only for reference.

HCNW4562-000E

Part No HCNW4562-000E
Manufacturer Broadcom Limited
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 8DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Input Type DC
Maximum Output Voltage 20V
Channel Output Current 8mA
Forward Voltage 1.6V
Continuous forward current- Max 25mA
Vce Saturation (Max) 1.25V
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Case / Package 8-DIP
Win Source Part Number 1042492-HCNW4562-000E
Popularity Medium
Supply and Demand Status Balance
Quantity per package 42
Ultra Librarian 3D Model Ultra Librarian HCNW4562-000E CAD Model

Description

The HCNW4562-000E is a single channel optocoupler manufactured by Broadcom Limited.

  • Mounting: Through-hole
  • Packaging: Tube/rail
  • Forward Voltage: 1.6V
  • Isolation Voltage: 5000Vrms
  • Maximum Output Voltage: 20V
  • Channel Output Current: 8mA
  • Continuous Forward Current: 25mA
  • Vce Saturation: 1.25V
  • Temperature Range: -40°C to 85°C
  • Case/Package: 8-DIP
